Matrix SETU VFX is an easy-to-use VoIP FXO FXS gateway for connecting traditional phone systems with modern IP networks. It supports FXO and FXS ports for smooth communication between PSTN and VoIP systems. The gateway offers secure call routing and simple integration, making it ideal for small and medium businesses. With reliable performance, SETU VFX ensures efficient and seamless voice communication for growing organizations.
USPs
Peer-to-peer Calls
Auto PSTN Fallback
TR-069 Auto-configuration
Features
Built-in PBX Functionality
Streamline your communication infrastructure by integrating PBX capabilities into the VoIP FXO FXS Gateway device for simplified call routing, advanced call handling, and enhanced communication management
Hotline Extension Dialing
VoIP FXO FXS Gateway enables designated extension to automatically establish a call without dialing, streamlining communication and improving responsiveness
Digest Authentication
Ensure secure and authenticated communication through VoIP FXO FXS Gateway by verifying and protecting user credentials for enhanced privacy
Automatic Number Translation
Convert and route incoming and outgoing calls to their respective translated numbers through VoIP FXO FXS Gateway for streamlined communication management
Call Detail Record
Capture and store detailed information about each call with VoIP FXO FXS Gateway for monitoring, billing, and analysis purposes
CLI Display
VoIP FXO FXS Gateway enables real-time caller information on the connected devices for efficient call handling and personalized communication
Emergency Number Dialing
Direct and immediate access to emergency services for enhanced safety and peace of mind
SNMP Monitoring
VoIP FXO FXS Gateway enables centralized monitoring and tracking of device performance, status, and network health for effective troubleshooting and optimization
Group Call Pickup
Answer incoming calls from designated call groups, promoting efficient call handling and teamwork through VoIP FXO FXS Gateway

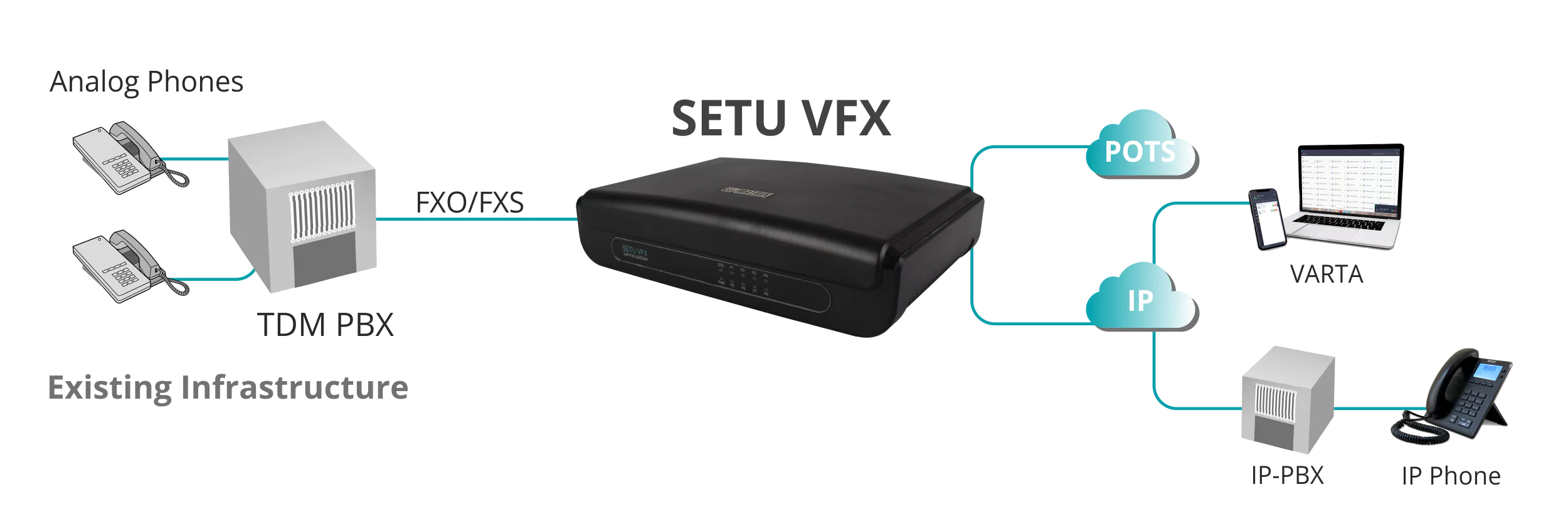

Architecture Diagram
Technical Specification
VOIP-FXS Gateway with 4 VOIP and 4 FXS Ports
SIP Accounts
- 9
Data Network
- 2 Port 10/100 Base-T (RJ45)
VoIP Protocol
- SIPv2, SDP, RTP (RFC 2833)
Network Protocol
- IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding and DMZ
Voice Codecs
- G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR
Line Echo Cancellation
- G.168 with 128ms Tail Length
Voice Processing Techniques
- Dynamic Jitter Buffer (Adaptive)
- Comfort Noise Generation (CNG)
- Voice Activity Detection (VAD)
Fax over IP (FoIP)
- T.38 and Pass-Through
Quality of Service (QoS)
- Layer 3 DiffServ and ToS
Security
- SRTP/TLS over SIP
FXO
Signaling
- Loop Start
Connector
- RJ11
Loop Limit
- 1200W
DTMF Dialling & Reception
- ITU-T Q.23 and Q.24
CLI Reception
- DTMF, FSK ITU-T V.23 and FSK Bellcore 202, TEL URI
Return Loss
- >18dB
Call Maturity
- Delay and Polarity Reversal
FXS
Signaling
- Loop Start
Connector
- RJ11
Loop Limit
- 1800W (Max.) Excluding Telephone Set
DTMF Dialing & Reception
- ITU-T Q.23 and Q.24
CLI Reception
- DTMF, FSK ITU-T V.23 and FSK Bellcore 202
Return Loss
- 18dB
POWER SUPPLY (Input)
SETU VFX
- 12V DC, 2A
POWER CONSUMPTION (Typical)
SETU VFX
- 15W
MECHANICAL (Dimension W x H x D)
SETU VFX
- 16.2 x 5.6 x 23.1 cm
WEIGHT
SETU VFX
- 0.8 Kgs (1.76 lbs)
OPERATING TEMPERATURE
SETU VFX
- -10°C to +50°C
STORAGE TEMPERATURE
SETU VFX
- -40°C to +85°C
VoIP-FXS Gateway with 8 VoIP and 8 FXS Ports
Parameters
- Specifications
SIP Accounts
- 9
Data Network
- 2 Port 10/100 Base-T (RJ45)
VoIP Protocol
- SIPv2, SDP, RTP (RFC 2833)
Network Protocol
- IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding and DMZ
Voice Codecs
- G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR
Line Echo Cancellation
- G.168 with 128ms Tail Length
Voice Processing Techniques
- Dynamic Jitter Buffer (Adaptive)
- Comfort Noise Generation (CNG)
- Voice Activity Detection (VAD)
Fax over IP (FoIP)
- T.38 and Pass-Through
Quality of Service (QoS)
- Layer 3 DiffServ and ToS
Security
- SRTP/TLS over SIP
FXO
Signaling
- Loop Start
Connector
- RJ11
Loop Limit
- 1200W
DTMF Dialling & Reception
- ITU-T Q.23 and Q.24
CLI Reception
- DTMF, FSK ITU-T V.23 and FSK Bellcore 202, TEL URI
Return Loss
- >18dB
Call Maturity
- Delay and Polarity Reversal
FXS
Signaling
- Loop Start
Connector
- RJ11
Loop Limit
- 1800W (Max.) Excluding Telephone Set
DTMF Dialing & Reception
- ITU-T Q.23 and Q.24
CLI Reception
- DTMF, FSK ITU-T V.23 and FSK Bellcore 202
Return Loss
- >18dB
POWER SUPPLY (Input)
SETU VFX
- 12V DC, 2A
POWER CONSUMPTION (Typical)
SETU VFX
- 15W
MECHANICAL (Dimension W x H x D)
SETU VFX
- 16.2 x 5.6 x 23.1 cm
WEIGHT
SETU VFX
- 0.8 Kgs (1.76 lbs)
OPERATING TEMPERATURE
SETU VFX
- -10°C to +50°C
STORAGE TEMPERATURE
SETU VFX
- -40°C to +85°C
VoIP-FXO Gateway with 4 VoIP and 4 FXO Ports
Parameters
- Specifications
SIP Accounts
- 9
Data Network
- 2 Port 10/100 Base-T (RJ45)
VoIP Protocol
- SIPv2, SDP, RTP (RFC 2833)
Network Protocol
- IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding and DMZ
Voice Codecs
- G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR
Line Echo Cancellation
- G.168 with 128ms Tail Length
Voice Processing Techniques
- Dynamic Jitter Buffer (Adaptive)
- Comfort Noise Generation (CNG)
- Voice Activity Detection (VAD)
Fax over IP (FoIP)
- T.38 and Pass-Through
Quality of Service (QoS)
- Layer 3 DiffServ and ToS
Security
- SRTP/TLS over SIP
FXO
Signaling
- Loop Start
Connector
- RJ11
Loop Limit
- 1200W
DTMF Dialling & Reception
- ITU-T Q.23 and Q.24
CLI Reception
- DTMF, FSK ITU-T V.23 and FSK Bellcore 202, TEL URI
Return Loss
- >18dB
Call Maturity
- Delay and Polarity Reversal
FXS
Signaling
- Loop Start
Connector
- RJ11
Loop Limit
- 1800W (Max.) Excluding Telephone Set
DTMF Dialing & Reception
- ITU-T Q.23 and Q.24
CLI Reception
- DTMF, FSK ITU-T V.23 and FSK Bellcore 202
Return Loss
- >18dB
POWER SUPPLY (Input)
SETU VFX
- 12V DC, 2A
POWER CONSUMPTION (Typical)
SETU VFX
- 15W
MECHANICAL (Dimension W x H x D)
SETU VFX
- 16.2 x 5.6 x 23.1 cm
WEIGHT
SETU VFX
- 0.8 Kgs (1.76 lbs)
OPERATING TEMPERATURE
SETU VFX
- -10°C to +50°C
STORAGE TEMPERATURE
SETU VFX
- -40°C to +85°C
VoIP-FXO Gateway with 8 VoIP and 8 FXO Ports
Parameters
Specifications
SIP Accounts
- 9
Data Network
- 2 Port 10/100 Base-T (RJ45)
VoIP Protocol
- SIPv2, SDP, RTP (RFC 2833)
Network Protocol
- IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding and DMZ
Voice Codecs
- G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR
Line Echo Cancellation
- G.168 with 128ms Tail Length
Voice Processing Techniques
- Dynamic Jitter Buffer (Adaptive)
- Comfort Noise Generation (CNG)
- Voice Activity Detection (VAD)
Fax over IP (FoIP)
- T.38 and Pass-Through
Quality of Service (QoS)
- Layer 3 DiffServ and ToS
Security
- SRTP/TLS over SIP
FXO
Signaling
- Loop Start
Connector
- RJ11
Loop Limit
- 1200W
DTMF Dialling & Reception
- ITU-T Q.23 and Q.24
CLI Reception
- DTMF, FSK ITU-T V.23 and FSK Bellcore 202, TEL URI
Return Loss
- >18dB
Call Maturity
- Delay and Polarity Reversal
FXS
Signaling
- Loop Start
Connector
- RJ11
Loop Limit
- 1800W (Max.) Excluding Telephone Set
DTMF Dialing & Reception
- ITU-T Q.23 and Q.24
CLI Reception
- DTMF, FSK ITU-T V.23 and FSK Bellcore 202
Return Loss
- >18dB
POWER SUPPLY (Input)
SETU VFX
- 12V DC, 2A
POWER CONSUMPTION (Typical)
SETU VFX
- 15W
MECHANICAL (Dimension W x H x D)
SETU VFX
- 16.2 x 5.6 x 23.1 cms
WEIGHT
SETU VFX
- 0.8 Kgs (1.76 lbs)
OPERATING TEMPERATURE
SETU VFX
- -10°C to +50°C
STORAGE TEMPERATURE
SETU VFX
- -40°C to +85°C
