With its comprehensive and versatile access control applications, COSEC PANEL200P – Access Control Panel is an intelligent site controller that provides a complete security layer for organizations. Depending on its two architectures, it can be used independently without server needs or as a bridge between controllers and COSEC. This device brings in 25+ advanced access control features, including Man Trap, Dead-Man Zone, Access Route, Who’s In, Duress Detection, and many more.
Access Control Panel

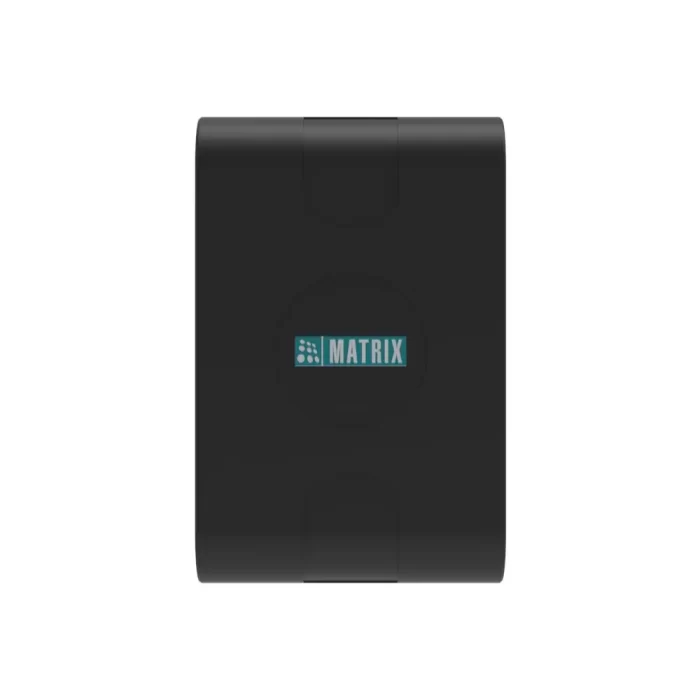

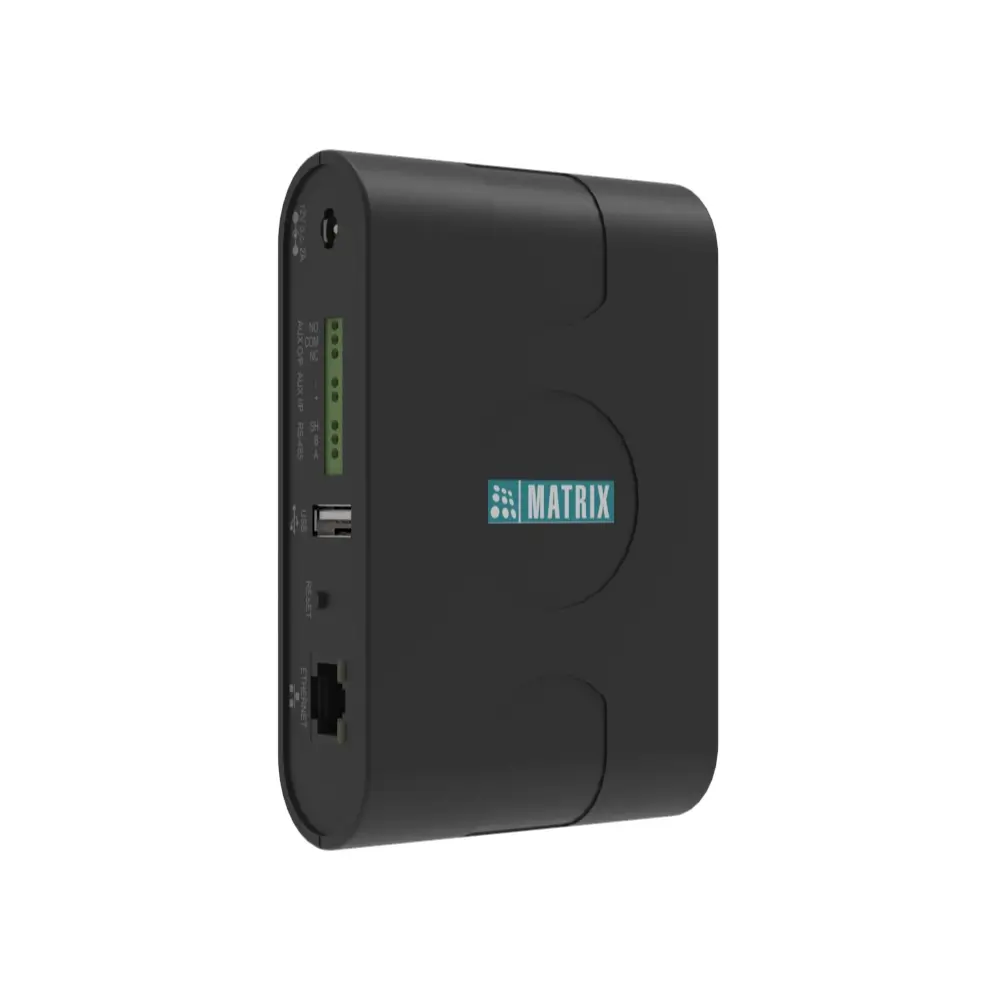

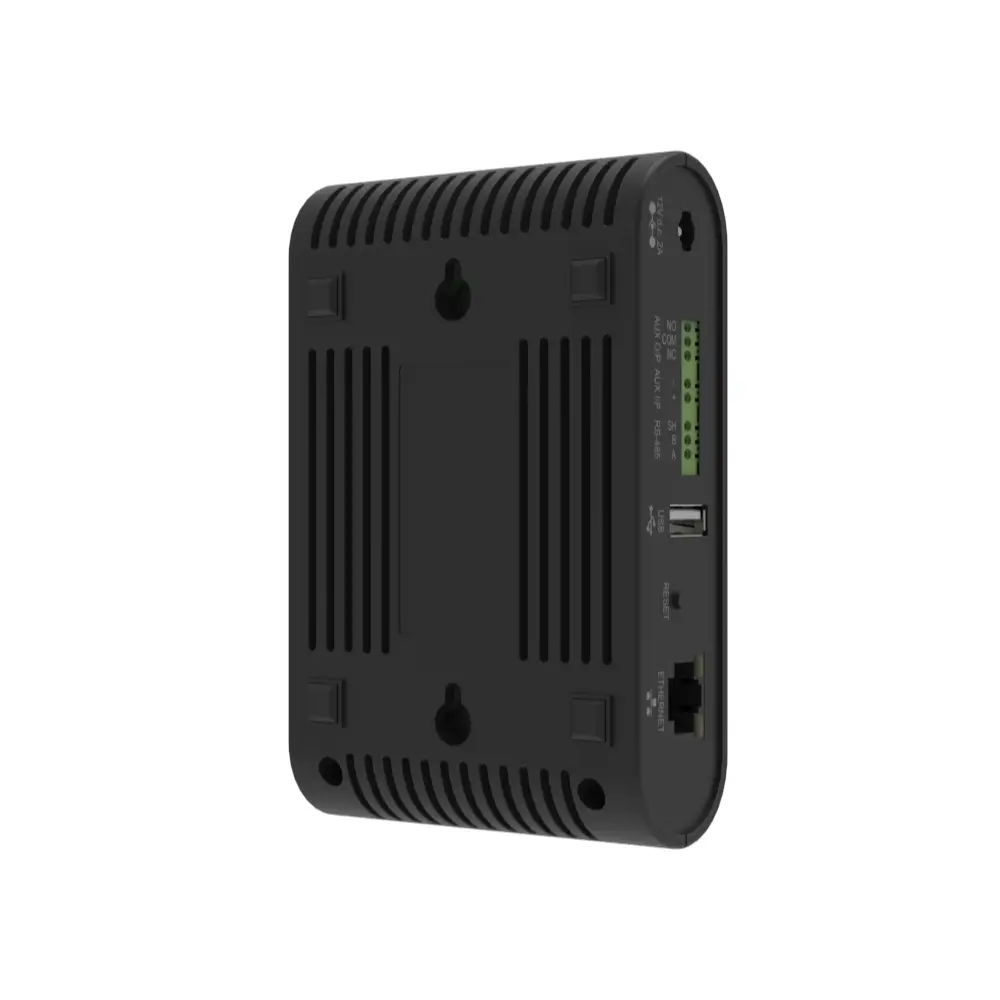

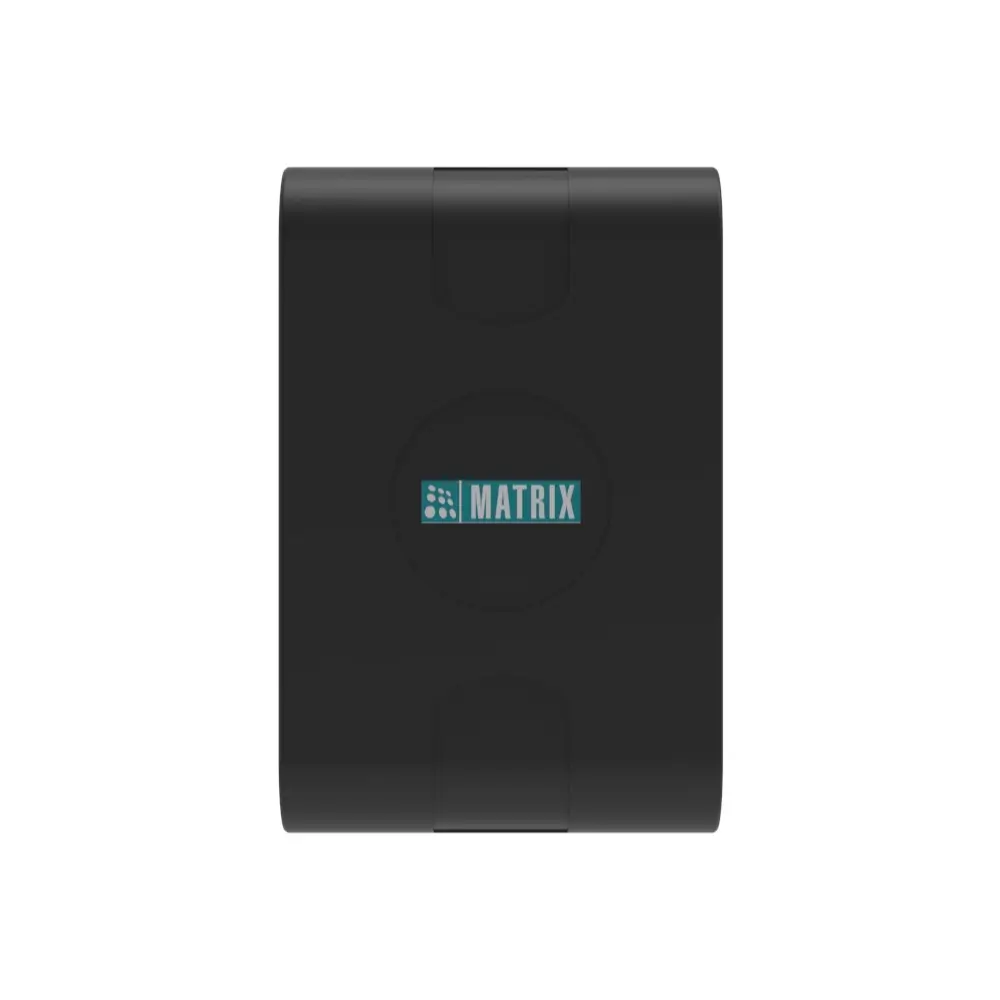

COSEC PANEL200P
- Dual Architecture Mode – Standalone and Network
- Massive Storage Capacity – 25,000 Users, 5,00,000 Event Logs
- Multi Connectivity Options – Wi-Fi, Ethernet, BLE, USB, 3G/4G/LTE, RS-485
- In-Built Status Alert with Tri-Color LED
- Suitable for Access Control and Time-Attendance Applications
- Dimensions (mm): Width 81.5 X Height 125.25 X Depth 30.5
100 in stock
SPECIFICATIONS
SPECIFICATIONS
| SPECIFICATIONS | COSEC PANEL200P |
|---|---|
| CAPACITY | |
| Door Controllers on Ethernet | 255 |
| Door Controllers on RS-485 | 32 |
| Max Users Capacity | 25,000 |
| Events Buffer | 5,00,000 |
| COMMUNICATION | |
| Wi-Fi | Inbuilt Wi-Fi Module (IEEE 802.11 b/g/n) |
| Inbuilt Bluetooth® | Yes |
| Ethernet | Yes 10/100 Mbps |
| Rs 485 | Yes |
| USB | One USB Port (for Data Transfer and for 2G-3G-4G /Wi-Fi Dongle) |
| SD Card | Yes (8GB) |
| INTERFACE | |
| Aux-In | Yes (4 states-short, open, activated & non-activated) |
| Aux-Out | Form C and SPDT Relay |
| HARDWARE | |
| CPU | Cortex A8 800 MHz |
| Flash Memory | 256 MB |
| RAM Memory | 256 MB (DDR3 SDRAM @ 800Mhz) |
| Operating system | Linux based OS |
| Communication Port | Ethernet & RS-485 |
| Tamper Detection | Yes |
| RTC | Yes |
| AUDIO VISUAL | |
| LED | Tricolor LED (Power, Status and Alarm) |
| Buzzer | Yes(12V) |
| ENVIRONMENTAL | |
| Operating Temperature | -10°C to + 55°C (14°F to 131°F) |
| Humidity | 5% to 95% RH Non-condensing |
| POWER | |
| Input Power | External Power Adapter 12VDC @ 2A |
| MECHANICAL | |
| Dimensions (L x H x D) | 125.25mm X 81.5mm X 30.5mm (4.93″ x 3.20″ x 1.20″) |
| Weight | 140gm (0.308 Lbs) |
| Encloser materia | ABS V0 grade |
| CERTIFICATES | |
| Certificates | FCC, CE, and RoHS |
| COMPATIBILITY | |
| System Integration | API For Software Integration |
| Architecture | 1. Network Architecture – With COSEC CENTRA/VYOM 2. Standalone Architecture |
| OTHER DETAIL | |

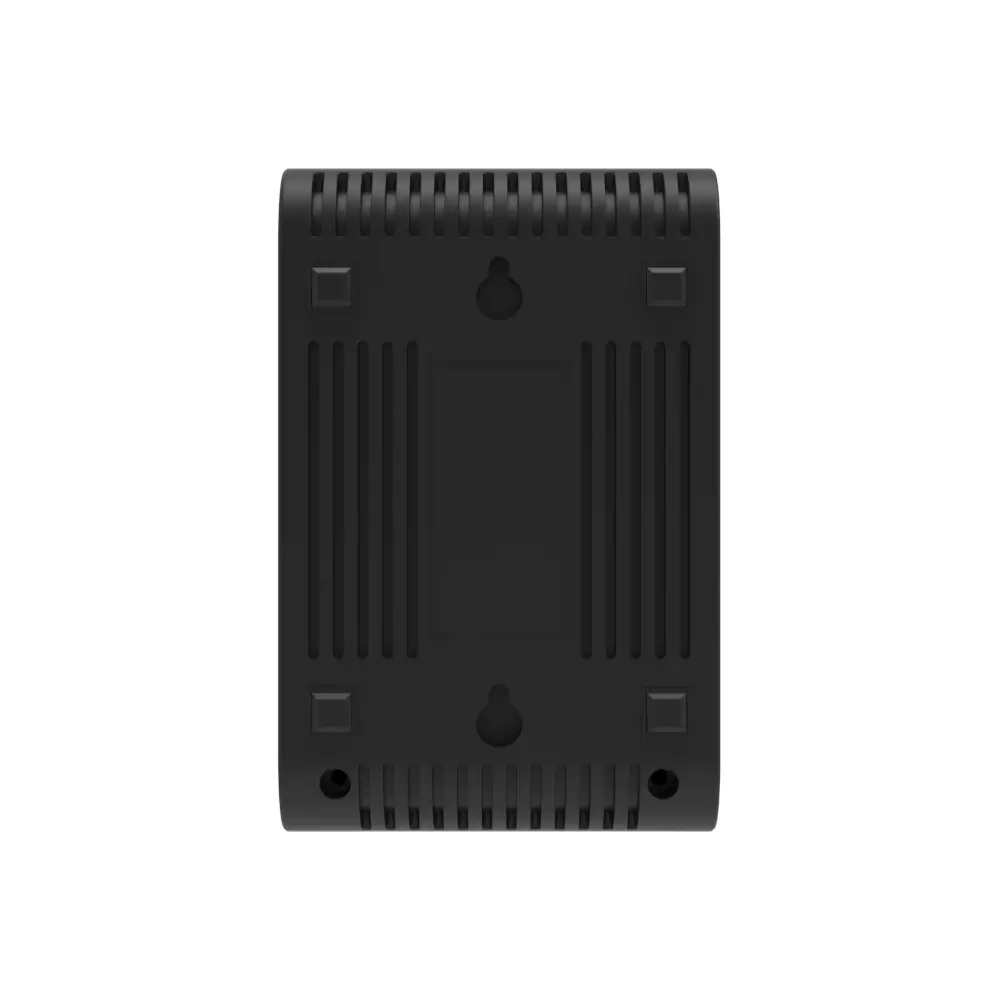

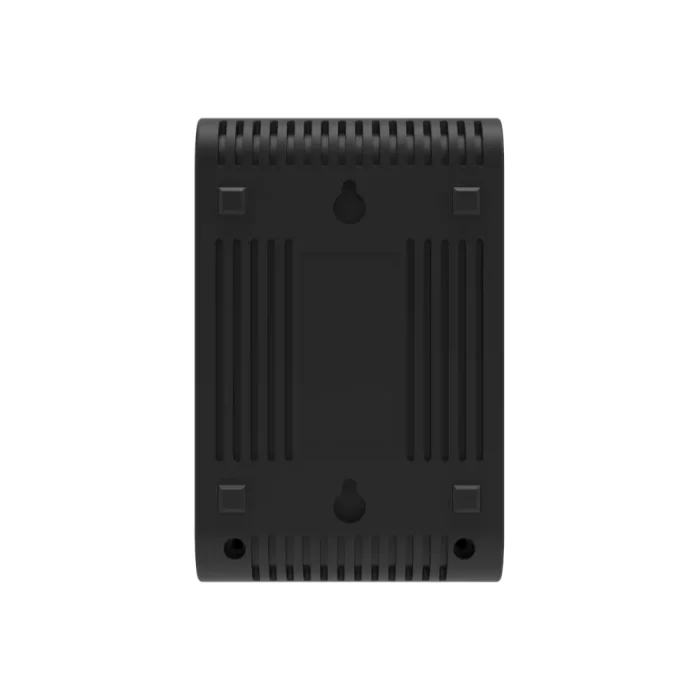

| Mounting | Wall Mounting or Table Top |
| Packaging Content | 1. Main unit 2. Adaptor (12VDC, 2A) 3. SD Card (8GB) |
Architecture
Architecture
DOWNLOADS
DOWNLOADS
Datasheet
|
