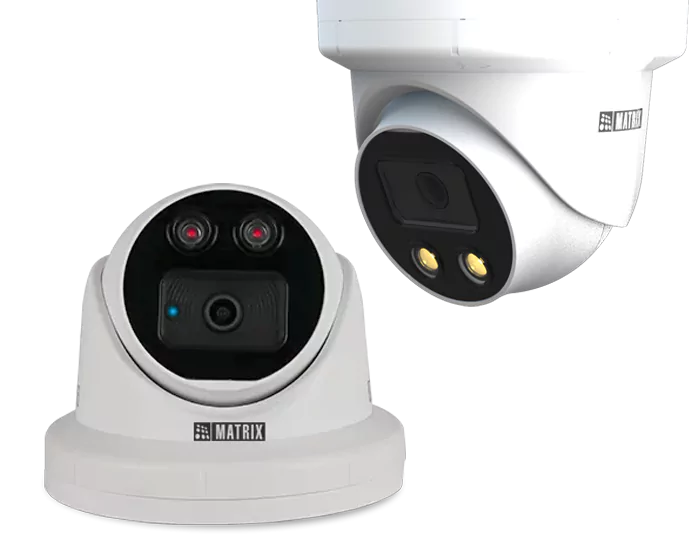

Turret Cameras, Available in Standard and All Color Variants

Revolutionary low-light color imaging technology for clear and vivid surveillance, day or night
Astounding Color View, Even at 0.01 lux Illumination Level in the Standard Variant
All Color Cameras Come with Supplement light (WARM LED) for Superior Performance
SONY STARVIS Back Illuminated Sensor for Better Image Quality in Low-light Conditions
IR Led Range of up to 30m for Better Visibility at Night

Cyber Secure Surveillance

First Indian Company to Offer RDSO 6.0 Compliant Cameras, Certified by STQC Delhi Lab
Data Privacy and Protection with OWASP ASVS 4.0 L2 Compliant Turret IP Cameras
Eliminates Network Vulnerability by Providing Adequate Password, Firmware, and Software Protection
Https Streaming Using TLS 1.2 and Edge Data Encryption to Ensure Cyber Secure Data Streaming and Storage

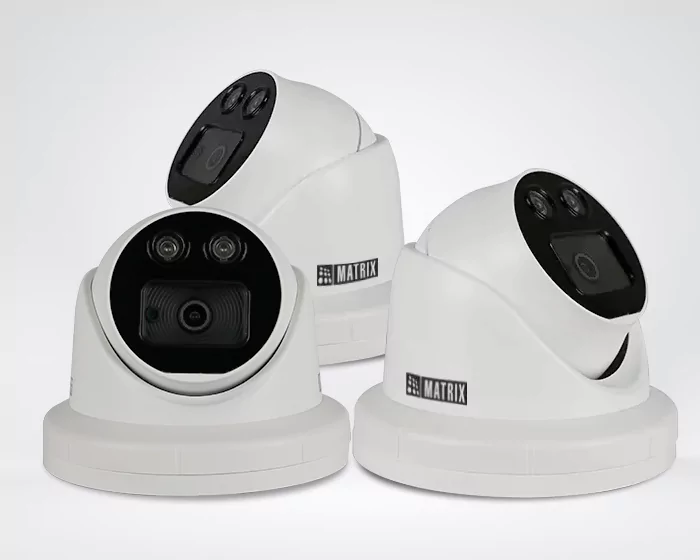

Easy Maneuverability

Turret Cameras come in Ball and Socket Design
Effortless Rotation for easy Manual Positioning
Versatile Angles for Image Capture from Anywhere
Seamless Operation for Ease of Use

Features

Varied Specifications

Catering diverse needs with varied specifications - 2MP/5MP resolutions, flexible lens options

Adaptive Streaming

Reduce frame rate when inactive, cutting storage and bandwidth usage by up to 50% for optimized performance

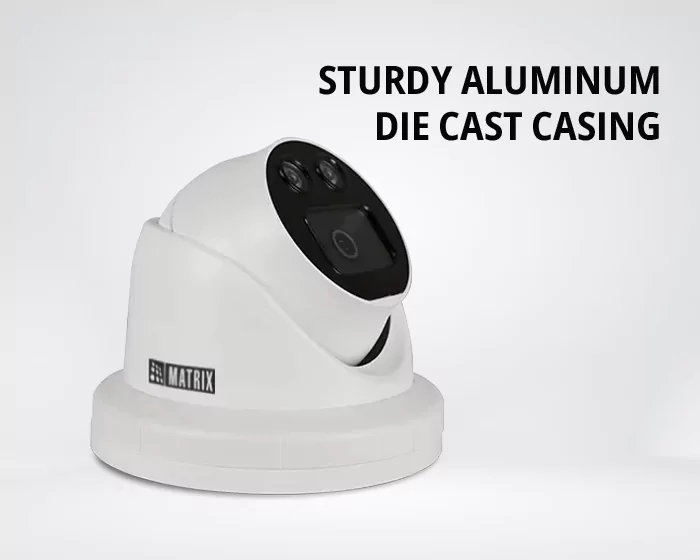

Sturdy Design

Matrix introduces impact-resistant ADI casing, simplified maintenance with an external reset switch, and a chambered design to eliminate IR glare

Smart Streaming

Smart streaming technology divides streams into multiple bitrates, optimizing storage and bandwidth while preserving crucial details

120dB True WDR

Unlock perfect lighting reproduction with 120dB WDR. Smart exposure adjustment ensures perfectly balanced captures every time

Intelligent Video Analytics

Intelligent Video Analytic Features for Comprehensive Surveillance: motion, tamper, intrusion, tripwire, and time-triggered detection

Quad Stream Support

Quad stream support in CCTV cameras enables simultaneous generation of four video streams, gives the flexibility for monitoring, recording, and live-streaming activities

Expanded Field of View

Experience unmatched surveillance with Matrix CCTV cameras featuring a Wide Field of View of 125°

High Sound-to-Noise Ratio

Unrivaled image precision with Matrix CCTV Cameras boasting an exceptional SNR ratio of >70dB

Applications

Parking Management

Weighbridge Integration

Perimeter Security

Access Control Integration

Centralized Video Surveillance

Automatic Number Plate Recognition

Architecture Diagram

Technical Specifications

2MP (IR Turret Cameras | All Color Cameras)

2MP Resolution
120dB True WDR, >70dB SNR
IR Range, Warm Led Range up to 30m
BIS, CE, FCC, RoHS, IP67
NDAA Compliant

IMAGE SENSOR

Resolution

2 MP (1920 x 1080)

Sensor Type and Size

1/2.8″ SONY – CMOS 2MP Active Pixel
Progressive Scan, Back-Illuminated Image sensor (STARVIS Series)

LENS

Minimum Illumination

Colour – 0.01 Lux @( F1.2 AGC ON)
IR Turret Cameras: Monochrome – 0 Lux
Turret All Color Cameras: 0 Lux with white light

Focal Length

2.8mm, 3.6mm, 6mm

Focus Range

0.3m to infinity

Field of View (FOV)

2.8mm 3.6mm 6mm

HFOV 106.9° 87.6° 54°

VFOV 56.9° 46.4° 29.03°

DFOV 127.9° 104.5° 62.96°

Lens Mount

For Fixed Lens: M12

Focus

Fixed for 2.8mm,3.6mm, 6mm

Aperture (F#)

Fixed Lens: F 1.6/ F2.0

Iris Type

Fixed Lens: Fixed

Type of LED

IR Turret Cameras: IR LED
Turret All Color Cameras: Warm LED

IR LED and Supplement LED Range

Up to 30m

Switching

Auto/ Manual (Both IR and LED)

AUDIO INTERFACE

Audio IN

Audio OUT

Two-way Audio

Audio Compression

Alarm In

Alarm Out

HARDWARE SPECIFICATIONS

SD Card

Not Supported

Camera Adjustment Angle

Pan – 0° to 360°
Tilt – 0° to 75°
Rotate – 0° to 360°

IMAGE AND VIDEO

No. of Stream Profiles

Stream Profiles

Profile 1: 1920x1080p(2MP) @30fps (H.265/ H.264)
Profile 2: D1 @30fps (H.265/H.264)
Profile 3: 1080p/720p/D1/2CIF/CIF @5fps (MJPEG) or 720p/D1/2CIP/CIF@15fps(H.264/H.265)
Profile 4: 720p/D1/2CIF/CIF @ 30 fps (H.265/H.264/MJPEG)

Available Resolutions

1920 x 1080, 720p, D1,2CIF, CIF, VGA

Max Resolution

1920 x 1080

Bitrate

128 kbps-8Mbps

Bitrate Type

CBR, VBR

Video Compression

H.265, H.264, MJPEG

Frame Rate

1-30fps

Shutter Speed

1/15s -1/100000s (in Upcoming Release)

Adaptive Streaming

ONVIF Profiles

S, G and T

Edge Recording

Yes only in NAS

Alarm Recording

Pre (30 sec) and Post(300 sec)

Motion Recording

Time-triggered

Video Parameters

Snapshot, Region of Interest (ROI), BLC, Day/Night Settings

Privacy Masks

WDR

True WDR (120dB)

SNR

>70dB

Image Enhancement

Saturation/ Contrast/ Sharpness/Brightness/Auto Exposure/HVS-Forensics/ Smart IR

DNR

2D &3D

Video Analytics

Motion/No Motion Detection, View Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion

ALERTS

IP Conflict

Network Disconnect

Storage Full

EVENTS AND ACTIONS

Upload Image

NAS, SFTP

Upload Clip

NAS, SFTP

Notifications

E-mail, SMS, TCP

PROTOCOLS SUPPORTED

Supported protocols

TCP/IP, HTTP,ARP, HTTPS, DHCP, QoS, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, HTTPS, , TLS/SSL, SFTP, ICMP, IGMP, 802.1x, SNMP, UPnP, Bonjour,UDP

Web Viewer

Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0

Browser

IE, Chrome, Mozilla

CYBER SECURITY

Secure boot

Signed firmware

Data Encryption

All data, including sensitive data, is encrypted with AES 256 and RSA 2048

IP Address Filtering

HTTPs Streaming

Yes, using TLS 1.2

Edge Data Encryption

Network Authentication

Yes,802.1x Network authentication

Secure Firmware Upgrade

Anti-roll back firmware

Web login Password protection

Unused debug interface protection

OPERATING PARAMETERS

Power Supply

802.3af (PoE)

Power Consumption

Approximately 5W

Operating Humidity

Less than 95% RH (non-condensing)

Operating Temperature

-30°C to 60°C

Storage Temperature

-35°C to 60°C

PHYSICAL PARAMETERS

Communication interface

10Base-T/100BaseTX Ethernet (RJ-45)

Weight

720gms

Color

Infinity White

Dimensions

Φ138.58 mm x 118.97 mm (Diameter x Height)

Storage

Certifications

BIS, CE, IP67, FCC Part-15 Subpart – B, ONVIF S G and T, STQC Certified with OWASP ASVS 4.0 L2

View Ordering Information

Ordering Information

Turret Series 2MP	Description	Lens	Focal Length	Two-way Audio	Digital I/O
SATATYA MITC20FL28CWS P2	2MP All Color Camera with 2.8mm Lens	Fixed	2.8mm	No	No
SATATYA MITC20FL36CWS P2	2MP All Color Camera with 3.6 mm Lens	Fixed	3.6mm	No	No
SATATYA MITC20FL60CWS P2	2MP All Color Camera with 6 mm Lens	Fixed	6.0mm	No	No
SATATYA MITR20FL28CWS P2	2MP IR Turret Camera with 2.8mm Lens	Fixed	2.8mm	No	No
SATATYA MITR20FL36CWS P2	2MP IR Turret Camera with 3.6mm Lens	Fixed	3.6mm	No	No
SATATYA MITR20FL60CWS P2	2MP IR Turret Camera with 6mm Lens	Fixed	6mm	No	No

5MP (IR Turret Cameras | All Color Cameras)

5MP Resolution
120dB True WDR, >70dB SNR
IR Range, Warm Led Range up to 30m
BIS, CE, FCC, RoHS, IP67
NDAA Compliant
