Next-generation Conveyance Facilities

Next-generation Conveyance Facilities
  • VoIP FXO FXS Gateway with Capacity of Call Detail Records of 2000 Calls
  • Caller ID Presentation on Analog Station
  • High-quality Voice Conveyance over IP Networks
  • Efficient Data Conveyance
Next-generation Conveyance Facilities

Secure Communication Bridging

  • Secure Communication between VoIP and Analog Networks
  • VoIP Security Over SRTP/TLS Encryption
  • Restrict Unwanted Calls with a List of Denied Numbers through VoIP FXO FXS Gateway
  • Prevention of Unauthorized Access and Eavesdropping

TR-069 Auto-configuration

  • Secure Remote Management Protocol through VOIP FXO FXS Gateway
  • Supports Dynamic Service Provisioning, Firmware management, and Remote Diagnostics
  • Centralized Management and Control of Gateways through VoIP FXO FXS Gateway
  • Efficient Updates and Configuration Changes Over the Network

Features

Auto PSTN Fallback for Assured Connectivity

Auto PSTN Fallback for Assured Connectivity

VoIP FXO FXS Gateway seamlessly switches to the PSTN (Public Switched Telephone Network) in case of network or IP connectivity issues for uninterrupted and reliable communication

Auto PSTN Fallback for Assured Connectivity

Built-in PBX Functionality

Built-in PBX Functionality

VoIP FXO FXS Gateway integrates PBX capabilities into the gateway device for simplified call routing, advanced call handling, and enhanced communication management

Built-in PBX Functionality

Hotline Extension Setting

Hotline Extension Dialing

VoIP FXO FXS Gateway enables designated extension to automatically establish a call without dialing, streamlining communication and improves responsiveness

Hotline Extension Setting

Digest Authentication

Digest Authentication

Advanced security measures which verifies and protects user credentials during the authentication process for enhanced privacy and data protection

Digest Authentication

Automatic Number Translation

Automatic Number Translation

VoIP FXO FXS Gateway converts and routes incoming and outgoing calls to their respective translated numbers for streamlined communication management

Automatic Number Translation

Call Detail Record

Call Detail Record

VoIP FXO FXS Gateway captures and stores detailed information about each call for monitoring, billing, and analysis purposes

Call Detail Record

CLI Display

CLI Display

Real-time caller information with VoIP FXO FXS Gateway on the connected devices for efficient call handling and personalized communication

CLI Display

Emergency Number Dialing

Emergency Number Dialing

Direct and immediate access to emergency services through VoIP FXO FXS Gateway for enhanced safety and peace of mind

Emergency Number Dialing

SNMP Monitoring

SNMP Monitoring

Allows centralized monitoring and tracking of device performance, status, and network health for effective troubleshooting and optimization

SNMP Monitoring

Application Diagram

Technical Specifications

SETU VFXTH3200 - VOIP-FXO Gateway with 32 VOIP and 32 FXO Ports

  • 32 VoIP Channels
  • 32 FXO Ports
  • DTMF and Pulse Dialing
  • VoIP Port Protocol: SIPv2, SDP, RTP (RFC 2833)

Parameters

Specifications

SIP Accounts

  • 32

Data Network

  • 1 Port 10/100 Base-T (RJ45)

VoIP Protocol

  • SIPv2, SDP, RTP (RFC 2833)

Network Protocol

  • IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding and DMZ

Voice Codecs

  • G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR

Line Echo Cancellation

  • G.168 with 128ms Tail Length

Voice Processing Techniques

  • Dynamic Jitter Buffer (Adaptive)
  • Comfort Noise Generation (CNG)
  • Voice Activity Detection (VAD)

Fax over IP (FoIP)

  • T.38 and Pass-Through

Quality of Service (QoS)

  • Layer 3 DiffServ and ToS

Security

  • SRTP/TLS over SIP

FXO

Signaling

  • Loop Start

Connector

  • RJ11

Loop Limit

  • 1200W

DTMF Dialling & Reception

  • ITU-T Q.23 and Q.24

CLI Reception

  • DTMF, FSK ITU-T V.23 and FSK Bellcore 202, TEL URI

Return Loss

  • >18dB

Call Maturity

  • Delay and Polarity Reversal

FXS

Signaling

  • Loop Start

Connector

  • RJ11

Loop Limit

  • 1800W (Max.) Excluding Telephone Set

DTMF Dialing & Reception

  • ITU-T Q.23 and Q.24

CLI Reception

  • DTMF, FSK ITU-T V.23 and FSK Bellcore 202

Return Loss

  • 18dB
POWER SUPPLY (Input)

SETU VFXTH

  • 24V DC, 2.5A
POWER CONSUMPTION (Typical)

SETU VFXTH

  • 60W
MECHANICAL (Dimension W x H x D)

SETU VFXTH

  • 48.3 x 5.1 x 17.2 cms
WEIGHT

SETU VFXTH

  • 1.6 Kgs (3.52 lbs)
OPERATING TEMPERATURE

SETU VFXTH

  • -10°C to +50°C
STORAGE TEMPERATURE

SETU VFXTH

  • -40°C to +85°C

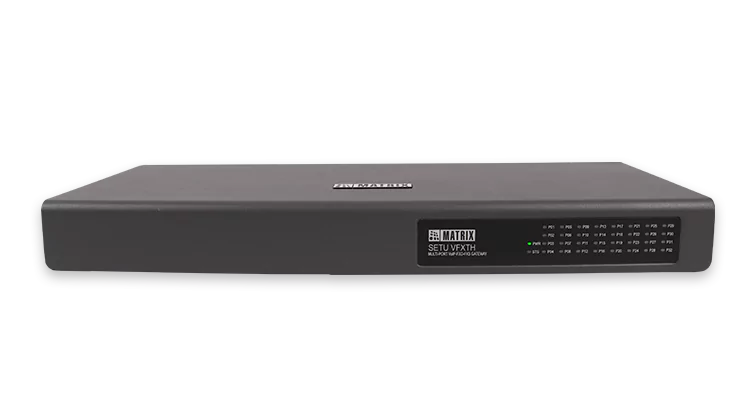

SETU VFXTH0032 - VoIP-FXS Gateway with 32 VoIP and 32 FXS Ports

  • 32 VoIP Channels
  • 32 FXS Ports
  • DTMF and Pulse Dialing
  • VoIP Port Protocol: SIPv2, SDP, RTP (RFC 2833)

Parameters

  • Specifications

SIP Accounts

  • 32

Data Network

  • 1 Port 10/100 Base-T (RJ45)

VoIP Protocol

  • SIPv2, SDP, RTP (RFC 2833)

Network Protocol

  • IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding and DMZ

Voice Codecs

  • G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR

Line Echo Cancellation

  • G.168 with 128ms Tail Length

Voice Processing Techniques

  • Dynamic Jitter Buffer (Adaptive)
  • Comfort Noise Generation (CNG)
  • Voice Activity Detection (VAD)

Fax over IP (FoIP)

  • T.38 and Pass-Through

Quality of Service (QoS)

  • Layer 3 DiffServ and ToS

Security

  • SRTP/TLS over SIP

FXO

Signaling

  • Loop Start

Connector

  • RJ11

Loop Limit

  • 1200W

DTMF Dialling & Reception

  • ITU-T Q.23 and Q.24

CLI Reception

  • DTMF, FSK ITU-T V.23 and FSK Bellcore 202, TEL URI

Return Loss

  • >18dB

Call Maturity

  • Delay and Polarity Reversal

FXS

Signaling

  • Loop Start

Connector

  • RJ11

Loop Limit

  • 1800W (Max.) Excluding Telephone Set

DTMF Dialing & Reception

  • ITU-T Q.23 and Q.24

CLI Reception

  • DTMF, FSK ITU-T V.23 and FSK Bellcore 202

Return Loss

  • >18dB
POWER SUPPLY (Input)

SETU VFXTH

  • 24V DC, 2.5A
POWER CONSUMPTION (Typical)

SETU VFXTH

  • 60W
MECHANICAL (Dimension W x H x D)

SETU VFXTH

  • 48.3 x 5.1 x 17.2 cms
WEIGHT

SETU VFXTH

  • 1.6 Kgs (3.52 lbs)
OPERATING TEMPERATURE

SETU VFXTH

  • -10°C to +50°C
STORAGE TEMPERATURE

SETU VFXTH

  • -40°C to +85°C

SETU VFXTH0016 - VoIP-FXS Gateway with 16 VoIP and 16 FXS Ports

  • 16 VoIP Channels
  • 16 FXS Ports
  • DTMF and Pulse Dialing
  • VoIP Port Protocol: SIPv2, SDP, RTP (RFC 2833)

Parameters

  • Specifications

SIP Accounts

  • 32

Data Network

  • 1 Port 10/100 Base-T (RJ45)

VoIP Protocol

  • SIPv2, SDP, RTP (RFC 2833)

Network Protocol

  • IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding and DMZ

Voice Codecs

  • G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR

Line Echo Cancellation

  • G.168 with 128ms Tail Length

Voice Processing Techniques

  • Dynamic Jitter Buffer (Adaptive)
  • Comfort Noise Generation (CNG)
  • Voice Activity Detection (VAD)

Fax over IP (FoIP)

  • T.38 and Pass-Through

Quality of Service (QoS)

  • Layer 3 DiffServ and ToS

Security

  • SRTP/TLS over SIP

FXO

Signaling

  • Loop Start

Connector

  • RJ11

Loop Limit

  • 1200W

DTMF Dialling & Reception

  • ITU-T Q.23 and Q.24

CLI Reception

  • DTMF, FSK ITU-T V.23 and FSK Bellcore 202, TEL URI

Return Loss

  • >18dB

Call Maturity

  • Delay and Polarity Reversal

FXS

Signaling

  • Loop Start

Connector

  • RJ11

Loop Limit

  • 1800W (Max.) Excluding Telephone Set

DTMF Dialing & Reception

  • ITU-T Q.23 and Q.24

CLI Reception

  • DTMF, FSK ITU-T V.23 and FSK Bellcore 202

Return Loss

  • >18dB
POWER SUPPLY (Input)

SETU VFXTH

  • 24V DC, 2.5A
POWER CONSUMPTION (Typical)

SETU VFXTH

  • 60W
MECHANICAL (Dimension W x H x D)

SETU VFXTH

  • 48.3 x 5.1 x 17.2 cms
WEIGHT

SETU VFXTH

  • 1.6 Kgs (3.52 lbs)
OPERATING TEMPERATURE

SETU VFXTH

  • -10°C to +50°C
STORAGE TEMPERATURE

SETU VFXTH

  • -40°C to +85°C

SETU VFXTH0024 - VoIP-FXS Gateway with 24 VoIP and 24 FXS Ports

  • VoIP-FXO-FXS Gateway with 24 VoIP and 24 FXS Ports
  • DTMF and Pulse Dialing
  • VoIP Port Protocol: SIPv2, SDP, RTP (RFC 2833)

SIP Accounts

  • 32

Data Network

  • 1 Port 10/100 Base-T (RJ45)

VoIP Protocol

  • SIPv2, SDP, RTP (RFC 2833)

Network Protocol

  • IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding and DMZ

Voice Codecs

  • G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR

Line Echo Cancellation

  • G.168 with 128ms Tail Length

Voice Processing Techniques

  • Dynamic Jitter Buffer (Adaptive)
  • Comfort Noise Generation (CNG)
  • Voice Activity Detection (VAD)

Fax over IP (FoIP)

  • T.38 and Pass-Through

Quality of Service (QoS)

  • Layer 3 DiffServ and ToS

Security

  • SRTP/TLS over SIP

FXO

Signaling

  • Loop Start

Connector

  • RJ11

Loop Limit

  • 1200W

DTMF Dialling & Reception

  • ITU-T Q.23 and Q.24

CLI Reception

  • DTMF, FSK ITU-T V.23 and FSK Bellcore 202, TEL URI

Return Loss

  • >18dB

Call Maturity

  • Delay and Polarity Reversal

FXS

Signaling

  • Loop Start

Connector

  • RJ11

Loop Limit

  • 1800W (Max.) Excluding Telephone Set

DTMF Dialing & Reception

  • ITU-T Q.23 and Q.24

CLI Reception

  • DTMF, FSK ITU-T V.23 and FSK Bellcore 202

Return Loss

  • >18dB
POWER SUPPLY (Input)

SETU VFXTH

  • 24V DC, 2.5A
POWER CONSUMPTION (Typical)

SETU VFXTH

  • 60W
MECHANICAL (Dimension W x H x D)

SETU VFXTH

  • 48.3 x 5.1 x 17.2 cms
WEIGHT

SETU VFXTH

  • 1.6 Kgs (3.52 lbs)
OPERATING TEMPERATURE

SETU VFXTH

  • -10°C to +50°C
STORAGE TEMPERATURE

SETU VFXTH

  • -40°C to +85°C

Certifications
