USPs

Superior Quality Images with Mini Dome Cameras

  • Mini Dome Cameras come with SONY STARVIS Back Illuminated CMOS Sensor for Better Image Quality in Low-light Conditions
  • Exceptional Color Clarity, Visible Even in Low-light (0.01 lux), with a Powerful 50m IR Range
  • IR Cut Filter Lens Eliminates Infrared Light for Accurate Daytime Color Reproduction

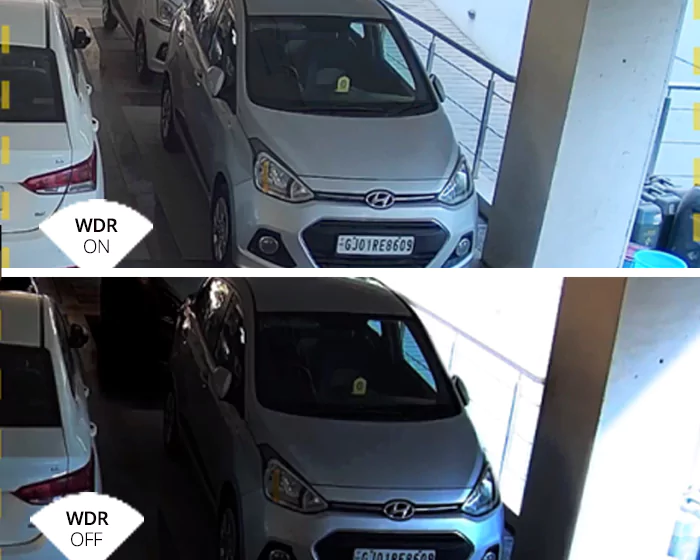

  • Dome Cameras with 120dB True WDR Feature Capture Well-balanced Images in Varying Light Conditions

Cyber Secure Video Surveillance

  • First Indian Company to Offer RDSO 6.0 Compliant Dome Cameras, Certified by STQC Delhi Lab
  • Data Privacy and Protection with OWASP ASVS 4.0 L2 Compliant Matrix Mini Dome Cameras
  • Eliminates Network Vulnerability by Providing Adequate Password, Firmware, and Software Protection
  • Https Streaming Using TLS 1.2 and Edge Data Encryption to Ensure Cyber Secure Data Streaming and Storage

Adaptive Streaming

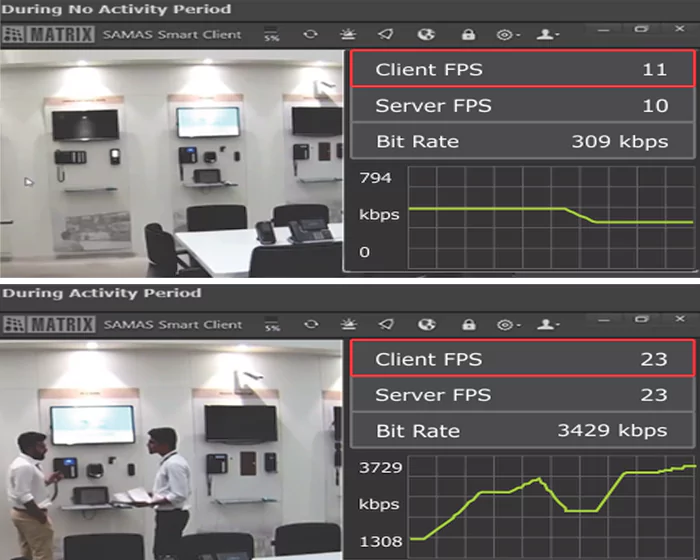

  • Adaptive Streaming: Reduces Frame Rate During Inactivity and Boost Efficiency
  • Slash Storage and Bandwidth Usage by Up to 50%
  • Smart Streaming, Region of Interest and H.265 Optimizes Storage and Bandwidth

Features

varied-specifications-for-diverse-surveillance-needs

Varied Specifications

Catering diverse needs with varied specifications - 2MP/5MP/8MP resolutions, flexible lens options, and audio capabilities

varied-specifications-for-diverse-surveillance-needs

Edge Recording with 512GB Storage Support

512GB Storage Support

Guaranteed reliable surveillance: 512GB edge recording safeguards against brownouts for uninterrupted monitoring

Edge Recording with 512GB Storage Support

Region of Interest

Allows streaming and recording of critical areas at a higher bitrate from the entire image, optimizing bandwidth and storage requirements

Smart Streaming to Minimize Bandwidth and Storage

Smart Streaming

Smart streaming technology divides streams into multiple bitrates, optimizing storage and bandwidth while preserving crucial details

Smart Streaming to Minimize Bandwidth and Storage

Proactive Surveillance with Intelligent Video Analytics

Intelligent Video Analytics

Intelligent video analytic features for comprehensive surveillance: motion, tamper, intrusion, tripwire, and time-triggered detection

Proactive Surveillance with Intelligent Video Analytics

Expanded Field of View for Superior Image Capture

Expanded Field of View

Experience unmatched surveillance with Matrix CCTV cameras featuring a wide field of view of 125°

Expanded Field of View for Superior Image Capture

Enhanced Monitoring, Recording, and Streaming With Quad Stream Support

Quad Stream Support

Quad stream support in CCTV cameras enables simultaneous generation of four video streams, gives the flexibility for monitoring, recording, and live-streaming activities

Enhanced Monitoring, Recording, and Streaming With Quad Stream Support

Maximize Storage Capacity with H.265 Video Compression

H.265 Video Compression

Unlock ample storage space with H.265 video compression. This advanced technology efficiently reduces file size, optimizing storage capacity without compromising video quality

Maximize Storage Capacity with H.265 Video Compression

Crystal-Clear Vision with 73dB Sound to Noise Ratio

High Sound-to-Noise Ratio

Unrivaled image precision with Matrix CCTV cameras boasting an exceptional SNR ratio of >70dB

Crystal-Clear Vision with 73dB Sound to Noise Ratio

Applications

Parking Management

Parking Management

Parking Management

icon_weighbridge-01

Weighbridge Integration

icon_weighbridge-01

Perimeter Security

Perimeter Security

Perimeter Security

Integration with Access Control

Access Control Integration

Integration with Access Control

Centralized Video Surveillance

Centralized Video Surveillance

Centralized Video Surveillance

Request a Quote

Architecture Diagram

architure-diagram-2

Technical Specifications

001
003
004
006

Professional Series 2MP IR Dome Camera

  • 2MP Resolution, with Audio Support
  • 120dB True WDR, >70dB SNR
  • IR Range 30m
  • BIS, CE, FCC, IP67 and RoHS
  • NDAA Compliant
IMAGE SENSOR

Resolution

  • 2 MP (1920 x 1080)@30fps

Sensor Type and Size

  • 1/2.8″ SONY – CMOS 2MP Active Pixel
  • Progressive Scan, Back-Illuminated Image sensor (STARVIS Series)
LENS

Minimum Illumination

  • Color – 0.01 Lux @F1.2 (AGC ON)
  • Monochrome – 0 Lux

Focal Length

  • 2.8mm, 3.6mm, 6mm

Focus Range

  • 0.3m to infinity

Field of View (FOV)

  • 2.8mm 3.6mm 6mm
    HFOV 106.9° 87.5° 54°
    VFOV 56.9° 44.4° 29.03°
    DFOV 127.9° 104.9° 62.96°

Lens Mount

  • For Fixed Lens: M12x0.5

Focus

  • Fixed for 2.8mm, 3.6mm, 6mm

Aperture (F#)

  • Fixed Lens: F 1.6/ F2.0

Iris Type

  • Fixed Lens: Fixed

IR Range

  • Up to 30m

IR Led Wavelength

  • 850nm

IR Switching

  • Auto/ Manual
AUDIO INTERFACE (ONLY FOR PREMIUM VARIANTS)

Audio Streaming

  • Two-way Audio (full duplex)

Audio Input

  • 1x (3.5mm stereo female audio jack) (for Premium Variants)

Audio Output

  • 1x (3.5mm stereo female audio jack) (For Premium Variants)

Audio IN Impedance

  • Linear level impedance 1kohm

Audio OUT Impedance

  • Linear level impedance 600ohm

Audio Noise Filtering

  • Yes

Audio Sampling rate

  • 8 KHz

Audio Compression

  • G.726, G.711 a-law and u-law
HARDWARE SPECIFICATIONS

SD Card

  • Up to 512GB

Camera Adjustment Angle

  • Pan – 0° to 330°
    Tilt – 0° to 75°
    Rotate – 0° to 180°
IMAGE AND VIDEO

No. of Stream Profiles

  • 4

Stream Profiles

  • Profile 1: 1920 x 1080p @30fps (H.265/H.264)
    Profile 2: D1 @30fps (H.265/H.264)
    Profile 3: 1920 x 1080p @5fps (MJPEG)
    Profile 4: 720p @30fps (H.265/H.264/MJPEG)

Available Resolutions

  • 1920 x 1080, 720p, D1,2CIF, CIF, VGA

Max Resolution

  • 1920 x 1080

Bitrate

  • 128 kbps-8Mbps

Bitrate Type

  • CBR, VBR

Video Compression

  • H.265, H.264, MJPEG

Frame Rate

  • 1-30fps

Shutter Speed

  • 1/15s -1/100000s

Adaptive Streaming

  • Yes

ONVIF Profiles

  • S, G, & T

Edge Recording

  • Yes

Alarm Recording

  • Pre and Post

Motion Recording

  • Yes

Time-triggered

  • Yes

Video Parameters

  • Snapshot, Region of Interest (ROI), BLC, Day/Night Settings

Privacy Masks

  • 3

WDR

  • True WDR (120dB)

SNR

  • >70dB

Image Enhancement

  • Saturation/ Contrast/ Sharpness/Brightness/Auto Exposure/HVS-Forensics/ Smart IR

DNR

  • 3D

Video Analytics

  • Motion, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, Audio Exception (Only Premium Variants)
ALERTS

IP Conflict

  • Yes

Network Disconnect

  • Yes

Storage Full

  • Yes
EVENTS AND ACTIONS

Upload Image

  • SD, NAS, SFTP

Upload Clip

  • SD, NAS, SFTP

Notifications

  • E-mail, SMS, TCP
PROTOCOLS SUPPORTED

Supported protocols

  • TCP/IP, HTTP,ARP, HTTPS, DHCP, QoS, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, HTTPS, , TLS/SSL, SFTP, ICMP, IGMP, 8021x, SNMP, UPnP, Bonjour,UDP

Web Viewer

  • Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0

Browser

  • IE, Chrome, Mozilla
CYBER SECURITY

Secure boot

  • Yes

Signed firmware

  • Yes

Data Encryption

  • All data, including sensitive data, is encrypted with AES 256 and RSA 2048

IP Address Filtering

  • Yes

HTTPs Streaming

  • Yes, using TLS 1.2

Edge Data Encryption

  • Yes

Network Authentication

  • Yes,802.1x Network authentication

Secure Firmware Upgrade

  • Yes

Anti-roll back firmware

  • Yes

Web login Password protection

  • Yes

Unused debug interface protection

  • Yes
OPERATING PARAMETERS

Power Supply

  • 12V (DC); 802.3af (PoE)

Power Consumption

  • Approximately 7W

Operating Humidity

  • Less than 95% RH (non-condensing)

Operating Temperature

  • -30°C to 60°C

Storage Temperature

  • -30°C to 60°C
PHYSICAL PARAMETERS

Communication interface

  • 10Base-T/100BaseTX Ethernet (RJ-45)

Weight

  • 740gms

Color

  • Infinity White

Dimensions (mm)

  • Diameter Φ126 x Length 100

Storage

  • NAS, SD Card

Certifications

  • BIS, CE, IP67, FCC Part-15 Subpart – B, ONVIF S G & T, IK10, STQC Certified with OWASP ASVS 4.0 L2

Ordering Information

Professional Series 2MP Dome Description Lens Focal Length Two-way Audio Digital I/O
SATATYA MIDR20FL28CWS P2 2MP IR Dome Fixed 2.8mm Lens Fixed 2.8mm No No
SATATYA MIDR20FL28CWP P2 2MP IR Dome Fixed 2.8mm Lens With Audio Fixed 2.8mm Yes Yes
SATATYA MIDR20FL36CWS P2 2MP IR Dome Fixed 3.6mm Lens Fixed 3.6mm No No
SATATYA MIDR20FL36CWP P2 2MP IR Dome Fixed 3.6mm Lens With Audio Fixed 3.6mm Yes Yes
SATATYA MIDR20FL60CWS P2 2MP IR Dome Fixed 6mm Lens Fixed 6.0mm No No
SATATYA MIDR20FL60CWP P2 2MP IR Dome Fixed 6mm Lens With Audio Fixed 6.0mm Yes Yes
Close
003
001
006
007

Professional Series 5MP IR Dome Camera

  • 5MP Resolution, with Audio Support
  • 120dB True WDR, >70dB SNR
  • IR Range 30m
  • BIS, CE, FCC, IP67 and RoHS
  • NDAA Compliant
IMAGE SENSOR

Resolution

  • 5 MP (2592*1944)

Sensor Type and Size

  • 1/2.8″ SONY – CMOS 5MP Active Pixel
  • Progressive Scan, Back-Illuminated Image sensor (STARVIS Series)
LENS

Minimum Illumination

  • Color – 0.01 Lux @F1.2 (AGC ON)
  • Monochrome – 0 Lux

Focal Length

  • 2.8mm, 4mm, 6mm

Focus Range

  • 0.3m to infinity

Field of View (FOV)

  • 2.8mm 4mm 6mm
    HFOV 107.6° 57° 127.62°
    VFOV 87.6° 46.4° 104.5°
    DFOV 54.3° 29.2° 63°

Lens Mount

  • For Fixed Lens: M12x0.5

Focus

  • Fixed for 2.8mm, 4mm, 6mm

Aperture (F#)

  • Fixed Lens: F 1.6/ F2.0

Iris Type

  • Fixed Lens: Fixed

IR Range

  • Up to 30m

IR Led Wavelength

  • 850nm

IR Switching

  • Auto/ Manual
AUDIO INTERFACE

Audio Streaming

  • Two-way Audio (full duplex)

Audio Input

  • 1x (3.5mm stereo female audio jack) (for Premium Variants)

Audio Output

  • 1x (3.5mm stereo female audio jack) (For Premium Variants)

Audio IN Impedance

  • Linear level impedance 1kohm

Audio OUT Impedance

  • Linear level impedance 600ohm

Audio Noise Filtering

  • Yes

Audio Sampling rate

  • 8 KHz

Audio Compression

  • G.726, G.711 a-law and u-law
HARDWARE SPECIFICATIONS

SD Card

  • Up to 512GB

Camera Adjustment Angle

  • Pan – 0° to 330°
    Tilt – 0° to 75°
    Rotate – 0° to 180°
IMAGE AND VIDEO

No. of Stream Profiles

  • 4

Stream Profiles

  • Profile 1: 1920 x 1080p @30fps (H.265/H.264)
    Profile 2: D1 @30fps (H.265/H.264)
    Profile 3: 1920 x 1080p @5fps (MJPEG)
    Profile 4: 720p @30fps (H.265/H.264/MJPEG)

Available Resolutions

  • 2592*1944 (5MP), 2592*1520,2048*1536,1920*1080,720p, D1,VGA,2CIF,CIF

Max Resolution

  • 2592*1944

Bitrate

  • 128kbps-16Mbps

Bitrate Type

  • CBR, VBR

Video Compression

  • H.265, H.264, MJPEG

Frame Rate

  • 1-30fps

Shutter Speed

  • 1/15s -1/100000s

Adaptive Streaming

  • Yes

ONVIF Profiles

  • S, G, & T

Edge Recording

  • Yes

Alarm Recording

  • Pre and Post

Motion Recording

  • Yes

Time Triggered

  • Yes

Video Parameters

  • Snapshot, Region of Interest (ROI), BLC, Day/Night Settings

Privacy Masks

  • 3

WDR

  • True WDR (120dB)

SNR

  • >70dB

Image Enhancement

  • Saturation/ Contrast/ Sharpness/Brightness/Auto
  • Exposure/HVS-Forensics/ Smart IR

DNR

  • 3D

Video Analytics

  • Motion, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, Audio Exception (Only Premium Variants)
ALERTS

IP Conflict

  • Yes

Network Disconnect

  • Yes

Storage Full

  • Yes
EVENTS AND ACTIONS

Upload Image

  • SD, NAS, SFTP

Upload Clip

  • SD, NAS, SFTP

Notifications

  • E-mail, SMS, TCP
PROTOCOLS SUPPORTED

Supported protocols

  • TCP/IP, HTTP, HTTPs, DSCP, QoS, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, TLS/SSL, SFTP, ICMP, IGMP, ARP, UDP, 802.1x, SNMP, UPnP, Bonjour

Web Viewer

  • Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0

Browser

  • IE, Chrome, Mozilla
CYBER SECURITY

Secure boot

  • Yes

Signed firmware

  • Yes

Data Encryption

  • All data, including sensitive data, is encrypted with AES 256 and RSA 2048

IP Address Filtering

  • Yes

HTTPs Streaming

  • Yes, using TLS 1.2

Edge Data Encryption

  • Yes

Network Authentication

  • Yes,802.1x Network authentication

Secure Firmware Upgrade

  • Yes

Anti-roll back firmware

  • Yes

Web login Password protection

  • Yes

Unused debug interface protection

  • Yes
OPERATING PARAMETERS

Power Supply

  • 12V (DC); 802.3af (PoE)

Power Consumption

  • Approximately 7W

Operating Humidity

  • Less than 95% RH (non-condensing)

Operating Temperature

  • -30°C to 60°C

Storage Temperature

  • -30°C to 60°C
PHYSICAL PARAMETERS

Communication interface

  • 10Base-T/100BaseTX Ethernet (RJ-45)

Weight

  • 740g

Color

  • Infinity White

Dimensions (mm)

  • Diameter Φ126 x Length 100

Storage

  • NAS, SD Card

Certifications

  • BIS, CE, IP67, FCC Part-15 Subpart – B, ONVIF S, G & T, IK10, STQC Certified with OWASP ASVS 4.0 L2

Ordering Information

Professional Series 5MP Dome Description Lens Focal Length Two-way Audio Digital I/O
SATATYA MIDR50FL28CWS P2 5MP IR Dome Fixed 2.8mm Lens Fixed 2.8mm No No
SATATYA MIDR50FL28CWP P2 5MP IR Dome Fixed 2.8mm Lens With Audio Fixed 2.8mm Yes Yes
SATATYA MIDR50FL40CWS P2 5MP IR Dome Fixed 4mm Lens Fixed 4mm No No
SATATYA MIDR50FL40CWP P2 5MP IR Dome Fixed 4mm Lens With Audio Fixed 4mm Yes Yes
SATATYA MIDR50FL60CWS P2 5MP IR Dome Fixed 6mm Lens Fixed 6.0mm No No
SATATYA MIDR50FL60CWP P2 5MP IR Dome Fixed 6mm Lens With Audio Fixed 6.0mm Yes Yes
Close
001
004
007
005

Professional Series 8MP IR Dome Camera

  • 8MP Resolution, with Audio Support
  • 120dB True WDR, >70dB SNR
  • IR Range 30m
  • BIS, CE, FCC, IP67 and RoHS
  • NDAA Compliant
IMAGE SENSOR

Resolution

  • 8 MP (3840*2160)

Sensor Type and Size

  • 1/2.8″ SONY – CMOS 8MP Active Pixel
  • Progressive Scan, Back-Illuminated Image sensor (STARVIS Series)
LENS

Minimum Illumination

  • Color – 0.01 Lux @F1.2 (AGC ON)
  • Monochrome – 0 Lux

Focal Length

  • 2.8mm, 3.6mm, 6mm

Focus Range

  • 0.3m to infinity

Field of View (FOV)

  • 2.8mm 3.6mm 6mm
    HFOV 106.9° 84° 51.26°
    VFOV 56.9° 47.8° 28.84°
    DFOV 127.9° 96.4° 58.74°

Lens Mount

  • For Fixed Lens: M12x0.5

Focus

  • Fixed for 2.8mm, 3.6mm, 6mm

Aperture (F#)

  • Fixed Lens: F 1.6/ F2.0

Iris Type

  • Fixed Lens: Fixed

IR Range

  • Up to 30m

IR Led Wavelength

  • 850nm

IR Switching

  • Auto/ Manual
AUDIO INTERFACE

Audio Streaming

  • Two-way Audio (full duplex)

Audio Input

  • 1x (3.5mm stereo female audio jack) (for Premium Variants)

Audio Output

  • 1x (3.5mm stereo female audio jack) (For Premium Variants)

Audio IN Impedance

  • Linear level impedance 1kohm

Audio OUT Impedance

  • Linear level impedance 600ohm

Audio Noise Filtering

  • Yes

Audio Sampling rate

  • 8 KHz

Audio Compression

  • G.726, G.711 a-law and u-law
HARDWARE SPECIFICATIONS

SD Card

  • Up to 512GB

Camera Adjustment Angle

  • Pan – 0° to 330°
    Tilt – 0° to 75°
    Rotate – 0° to 330°
IMAGE AND VIDEO

No. of Stream Profiles

  • 4

Stream Profiles

  • Profile 1: 2592 x 1944p @30fps (H.264/H.265)
    Profile 2: D1 @30fps (H.265/H.264)
    Profile 3: 2048x1536p @8fps (MJPEG)
    Profile 4: 1920 x 1080p @30fps (H.25/H.264/MJPEG)

Available Resolutions

  • 3840*2160,2688*1944,2688*1520, 1920*1080, 720p, D1, VGA

Max Resolution

  • 3840*2160 at 30fps

Bitrate

  • 128kbps-16Mbps

Bitrate Type

  • CBR, VBR

Video Compression

  • H.265, H.264, MJPEG

Frame Rate

  • 1-30fps

Shutter Speed

  • 1/15s -1/100000s

Adaptive Streaming

  • Yes

ONVIF Profiles

  • Both S and G

Edge Recording

  • Yes

Alarm Recording

  • Pre and Post

Motion Recording

  • Yes

Time-triggered

  • Yes

Video Parameters

  • Snapshot, Region of Interest (ROI), BLC, Day/Night Settings

Privacy Masks

  • 8

WDR

  • True WDR (120dB)

SNR

  • >70dB

Image Enhancement

  • Saturation/ Contrast/ Sharpness/Brightness/Auto
  • Exposure/HVS-Forensics/ Smart IR

DNR

  • 2D &3D

Video Analytics

  • Motion, Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion, Audio Exception (Only for Premium Variants)
ALERTS

IP Conflict

  • Yes

Network Disconnect

  • Yes

Storage Full

  • Yes
EVENTS AND ACTIONS

Upload Image

  • SD, NAS, SFTP

Upload Clip

  • SD, NAS, SFTP

Notifications

  • E-mail, SMS, TCP
PROTOCOLS SUPPORTED

Supported protocols

  • TCP/IP, HTTP, HTTPs, DSCP, QoS, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE, SMTP, NTP, TLS/SSL, SFTP, ICMP, IGMP, ARP, UDP, 802.1x, SNMP, UPnP, Bonjour

Web Viewer

  • Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0

Browser

  • IE, Chrome, Mozilla
CYBER SECURITY

Secure boot

  • Yes

Signed firmware

  • Yes

Data Encryption

  • All data, including sensitive data, is encrypted with AES 256 and RSA 2048

IP Address Filtering

  • Yes

HTTPs Streaming

  • Yes, using TLS 1.2

Edge Data Encryption

  • Yes

Network Authentication

  • Yes,802.1x Network authentication

Secure Firmware Upgrade

  • Yes

Anti-roll back firmware

  • Yes

Web login Password protection

  • Yes

Unused debug interface protection

  • Yes
OPERATING PARAMETERS

Power Supply

  • 12V (DC); 802.3af (PoE)

Power Consumption

  • Approximately 7W

Operating Humidity

  • Less than 95% RH (non-condensing)

Operating Temperature

  • -30°C to 60°C

Storage Temperature

  • -30°C to 60°C
PHYSICAL PARAMETERS

Communication interface

  • 10Base-T/100BaseTX Ethernet (RJ-45)

Weight

  • 740g

Color

  • Infinity White

Dimensions (mm)

  • Diameter Φ126 x Length 100

Storage

  • NAS, SD Card

Certifications

  • BIS, CE, IP67, FCC Part-15 Subpart – B, ONVIF S G & T, IK10, STQC Certified with OWASP ASVS 4.0 L2

Ordering Information

Professional Series 8MP Dome Description Lens Focal Length Two-way Audio Digital I/O
SATATYA MIDR80FL28CWS P2 8MP IR Dome Fixed 2.8mm Lens Fixed 2.8mm No No
SATATYA MIDR80FL28CWP P2 8MP IR Dome Fixed 2.8mm Lens With Audio Fixed 2.8mm Yes Yes
SATATYA MIDR80FL36CWS P2 8MP IR Dome Fixed 3.6mm Lens Fixed 3.6mm No No
SATATYA MIDR80FL36CWP P2 8MP IR Dome Fixed 3.6mm Lens With Audio Fixed 3.6mm Yes Yes
SATATYA MIDR80FL60CWS P2 8MP IR Dome Fixed 6mm Lens Fixed 6.0mm No No
SATATYA MIDR80FL60CWP P2 8MP IR Dome Fixed 6mm Lens With Audio Fixed 6.0mm Yes Yes
Close

Certifications

stqc-logo
CE
FCC
IK 10 Compliant Ruggedized CCTV Cameras
IP67
Onvif
RoHS
block9-8-image_owasp

Resources

product-manuals

Product Manuals

product-manuals-1

Presentation

Presentation

Presentation Revert

Brochure

Brochure

Brochure Revert

Technical Specifications

Technical Specifications

Technical-Specifications Revert

Back To Top
Right Menu Icon
