COSEC VEGA Series

Name: Matrix COSEC VEGA Series | Cutting-Edge Biometric & RFID Card Door Controllers
Brand: Matrix Comsec Private Limited

High-Performance Biometric Door Controller Equipped for High Security Applications

Request a Quote

USPs
Features
Applications
Diagram
Specifications
Resources
Know More Know More Know More Know More

USPs

Multiple User Credentials

Biometric: Finger
Pin and RFID Cards
Mobile through BLE
Dual Verification for High-Security Applications

Multiple Connectivity Options

Built-in Bluetooth, Wi-Fi, PoE, Ethernet, GSM/VoLTE Options
Use Existing IT Infrastructures to Meet Future Requirements
Low IT Infrastructure Cost and Future Proof

Higher User and Template Capacity

Stores up to 50,000 User Profiles
Fingerprint Template Capacity up to 9,600 in 1:N Mode
Fingerprint Template Capacity up to 1,00,000 in 1:1 Mode
Event Log Capacity of 5,00,000

Features

Secured Communication

Secure data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof

Auxiliary Devices Interface

Allow seamless connection of fire alarm as well as motion sensors and relay devices via aux ports, eliminating the need for external integration hardware

Tamper Detection

Provide better security with tamper detection, instantly alerting to any vandalism acts, ensuring enhanced protection for devices

Pluggable Card Reader Module

Enable easy customization, as card modules can be changed according to the user's needs, reducing downtime by seamlessly plugging into existing systems

Weather Resistance with IP65

Offers higher degree of protection with IP65 rating, providing reliable ingress protection against dust and water

SD Card Support

Allows for storage, in case of network disruption, and easy transfer of data

Applications

Time and Attendance

Visitor Management

Cafeteria Management

Contract Worker Management

Job Processing and Costing

Request a Quote

Interface Diagram

Technical Specifications

Finger and RFID Card Based Biometric Door Controller

Multi-Credential Support – Fingerprint, BLE, RFID Card, PIN
Massive Storage Capacity – 50,000 Users, 5,00,000 Event Logs
Finger Template Storage – 1:N Mode: 9,600,1:1 Mode: 1,00,000
Multi-Connectivity Options – Wi-Fi, PoE, Ethernet, BLE, USB, 3G/4G/LTE
Suitable for Access Control and Time-Attendance Applications

GENERAL

Credential Support

Bluetooth® (BLE), Fingerprint, RFID Card, PIN, Face (with Compatible Hardware)

Ingress Protection

IP65

Card

COSEC VEGA FAE:- EM Proximity Card
COSEC VEGA FAM:- MIFARE Classic®, DESFire EV1 and EV2(Read/Write), NFC Tag
COSEC VEGA FAI:- HID iClass Card Support (Read/Write), HID Prox, EM Prox, Desfire EV1 & EV2 (CSN Read) and Mifare Classic (CSN Read), NFC Tag

*MIFARE and MIFARE Classic® are trademarks of NXP B.V.

CAPACITY

Max. Users

50,000

Max. Template Storage

9,600 in 1: N Mode and 100,000 in 1:1 Mode

Event Buffer

500,000

Templates per User

Up to 10 (Single Template per Finger Mode)
Up to 5 (Dual Template per Finger Mode)

COMMUNICATION

Wi-Fi

Bluetooth®

Ethernet

Yes (10/100 Mbps)

PoE

Yes (IEEE 802.11 b/g/n)

RS-232

Mobile Broadband

Yes (3G/4G/LTE)

Wiegand

Yes (Selectable IN/OUT)
IN: 26 Bit format
OUT: Configurable

USB

1 USB Port (Data Transfer and 3G/4G/LTE Dongle)

INTERFACE

Exit Switch Port

Door Status Sense

Programmable NO, NC, Supervised

Door Lock Relay

30V DC @ 1A, Form C, DPDT Relay

Door Lock Power

12V DC @ 0.5A (Power to external Lock from Device)
30V DC @2 A (Power to lock from External power source)

Aux-In

Aux-Out

Reader Interface Types

RS-232 and Wiegand

HARDWARE

CPU

800 MHz ARM Cortex A8 based Processor

Memory

256 MB Flash + 512 MB DDR3 RAM

Micro SD Card

Yes (Inbuilt 16 GB)

Display

3.5″ TFT Display with Capacitive Touch Panel

Display Resolution

320 x 240 Pixel

Buzzer

Operating Temperature

0°C to +50°C (32°F to 122°F)

Humidity

5% to 95% RH Non-Condensing

Tamper Detection

Power

12V DC @ 2A

Power to Door Lock

12V DC @ 0.5A (Power to Lock from Device)

Dimensions (WxHxD)

91mm x 186mm x 38mm

Weight

0.54Kgs (1.19Lbs)

COMPATIBILITY

System Integration

API for Software Integration

Operational Modes

Direct Door with COSEC CENTRA / COSEC VYOM
Panel Door with COSEC PANEL200P”

SENSOR

Sensor Name

Suprema Optical Sensor – SFM6030

Sensor Technology

Optical Technology

Encryption

256-bit AES

Waterproof

False Acceptance Ratio (FAR)

0.001%

False Rejection Ratio (FRR)

0.001%

EER

<0.08%

Resolution (dpi)

Sensing Area

16.0mm x 18.0mm

Template Size

384 bytes

Finger Duress Detection

Supported (Direct/Panel Door)

INSTALLATION

Wall Mount

ACCESSORIES

Power Adapter

12VDC @ 2A (CE, FCC, UL, BIS)

Battery Backup

Certifications

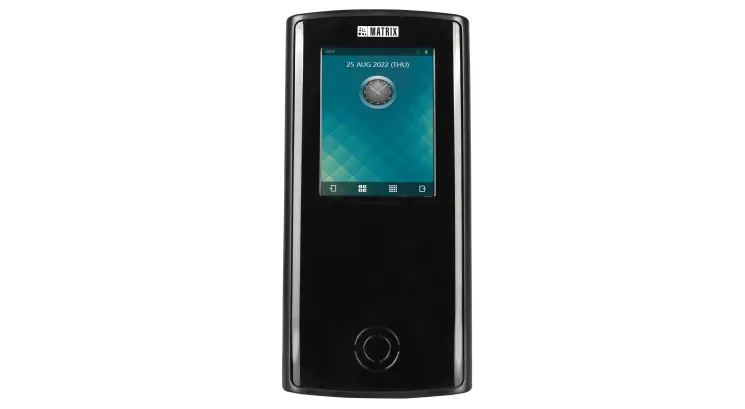

Cosec Vega Series Vega CAX Door Controllers

RFID Card Based Touch Screen Door Controller

Multi-Credential Support – BLE, RFID Card, PIN
Massive Storage Capacity – 50,000 Users, 5,00,000 Event Logs
Multi-Connectivity Options – Wi-Fi, PoE, Ethernet, BLE, USB, 3G/4G/LTE
Suitable for Access Control and Time-Attendance Applications

GENERAL

Credential Support

Bluetooth® (BLE), RFID Card, PIN, Face (with Compatible Hardware)

Ingress Protection

IP65

Card

COSEC VEGA CAE:- EM Proximity Card
COSEC VEGA CAM:- MIFARE Classic®, DESFire EV1 and EV2(Read/Write), NFC Tag
COSEC VEGA CAI:- HID iClass Card Support (Read/Write), HID Prox, EM Prox, Desfire EV1 & EV2 (CSN Read) and Mifare Classic (CSN Read), NFC Tag

*MIFARE and MIFARE Classic® are trademarks of NXP B.V.

CAPACITY

Max. Users

50,000

Event Buffer

500,000

COMMUNICATION

Wi-Fi

Bluetooth®

Ethernet

Yes (10/100 Mbps)

PoE

Yes (IEEE 802.11 b/g/n)

RS-232

Mobile Broadband

Yes (3G/4G/LTE)

Wiegand

Yes (Selectable IN/OUT)
IN: 26 Bit format
OUT: Configurable

USB

1 USB Port (Data Transfer and 3G/4G/LTE Dongle)

INTERFACE

Exit Switch Port

Door Status Sense

Programmable NO, NC, Supervised

Door Lock Relay

30V DC @ 1A, Form C, DPDT Relay

Door Lock Power

12V DC @ 0.5A (Power to external Lock from Device)
30V DC @2 A (Power to lock from External power source)

Aux-In

Aux-Out

Reader Interface Types

RS-232 and Wiegand

HARDWARE

CPU

800 MHz ARM Cortex A8 based Processor

Memory

256 MB Flash + 512 MB DDR3 RAM

Micro SD Card

Yes (Inbuilt 16 GB)

Display

3.5″ TFT Display with Capacitive Touch Panel

Display Resolution

320 x 240 Pixel

Buzzer

Operating Temperature

0°C to +50°C (32°F to 122°F)

Humidity

5% to 95% RH Non-Condensing

Tamper Detection

Power

12V DC @ 2A

Power to Door Lock

12V DC @ 0.5A (Power to Lock from Device)

Dimensions (WxHxD)

91mm x 186mm x 38mm

Weight

0.54Kgs (1.19Lbs)

COMPATIBILITY

System Integration

API for Software Integration

Operational Modes

Direct Door with COSEC CENTRA / COSEC VYOM
Panel Door with COSEC PANEL200P

INSTALLATION

Wall Mount

ACCESSORIES

Power Adapter

12VDC @ 2A (CE, FCC, UL, BIS)

Battery Backup

Certifications

Finger and RFID Card Based Touch Screen Time-Attendance Terminal

Multi-Credential Support – Fingerprint, EM Proximity Card, and PIN
Massive Storage Capacity – 50,000 Users, 5,00,000 Event Logs
Finger Template Storage – 1:N Mode: 9,600,1:1 Mode: 1,00,000
Multi-Connectivity Options – Ethernet, USB, 3G/4G/LTE
Suitable for Time-Attendance Applications

GENERAL

Credential Support

Fingerprint, RFID Card, PIN, Face (with Compatible Hardware)

Ingress Protection

IP65

Card

EM Proximity Card

CAPACITY

Max. Users

50,000

Max. Template Storage

9,600 in 1: N Mode and 100,000 in 1:1 Mode

Event Buffer

500,000

Templates per User

Up to 10 (Single Template per Finger Mode)
Up to 5 (Dual Template per Finger Mode)

COMMUNICATION

Ethernet

Yes (10/100 Mbps)

Mobile Broadband

Yes (3G/4G/LTE)

USB

1 USB Port (Data Transfer and 3G/4G/LTE Dongle)

HARDWARE

CPU

800 MHz ARM Cortex A8 based Processor

Memory

256 MB Flash + 512 MB DDR3 RAM

Micro SD Card

No Inbuilt SD Card (SD Card Supported)

Display

3.5″ TFT Display with Capacitive Touch Panel

Display Resolution

320 x 240 Pixel

Buzzer

Operating Temperature

0°C to +50°C (32°F to 122°F)

Humidity

5% to 95% RH Non-Condensing

Power

12V DC @ 2A

Dimensions (WxHxD)

91mm x 186mm x 38mm

Weight

0.54Kgs (1.19Lbs)

COMPATIBILITY

System Integration

API for Software Integration

Operational Modes

Direct Door with COSEC CENTRA / COSEC VYOM

SENSOR

Sensor Name

Suprema Optical Sensor – SFM6030

Sensor Technology

Optical Technology

Encryption

256-bit AES

Waterproof

False Acceptance Ratio (FAR)

0.001%

False Rejection Ratio (FRR)

0.001%

Resolution (dpi)

Sensing Area

16.0mm x 18.0mm

Template Size

384 bytes

Image Size (Pixel)

272mm x 320mm

INSTALLATION

Wall Mount

ACCESSORIES

Power Adapter

12VDC @ 2A (CE, FCC, UL, BIS)

Battery Backup

Certifications

Aadhaar Enabled Time-Attendance Terminal

Multi Credential Support – Fingerprint, MiFare Classic Card, PIN
Multi Connectivity Options – Ethernet, PoE, 3G/4G/LTE, and USB
Fast Identification Speed <1.5s
AEBAS Approved Linux Device
Suitable for Time-Attendance Application for Indian Government

GENERAL

Credential Support

Finger, Mifare Card, AADHAAR Number (PIN)

Card Support

Mifare Smart Card (Read/Write Supported)

Sensor

Suprema Optical Sensor (STQC Certified)

Keypad

Touch Screen Based

DISPLAY

Display

3.5″ TFT Display with Capacitive Touch Panel

Display Size

320 x 240 Pixels

Size of Wallpaper

512 kb

COMMUNICATION

Ethernet

Yes (10/100 Mbps on Ethernet)

Mobile Broadband

Yes (3G Support) Through USB dongle

Wi-Fi

Yes (802.11 b/g/n)

INTERFACES

USB

Yes (For 3G Connectivity and Data Transfer)

AUDIO-VISUAL

User Photo Display

Buzzer

CONFIGURATION

Platform (Operating System)

Embedded Linux

CPU

800 MHz ARM Cortex A8 based Processor

Flash Memory

256 MB Flash

RAM Memory

512 MB DDR3 RAM

Micro SD Card

Yes (16GB)

Battery Backup

ELECTRICAL

Input Power

12 VDC @ 2A

PHYSICAL

Dimensions (W x H x D) (mm^3)

91 x 186 x 38

Weight (kg)

0.54

Tamper Detection

ENVIRONMENTAL

Humidity

5% to 85% RH Non-Condensing

Operating Temperature

0°C to + 50°C (32°F to 122°F)
