COSEC VEGA FAM, Finger and MiFare Card Based Biometric Door Controller from VEGA series, is specifically built for demanding enterprise to meet the functional needs of an organization’s employee time tracking system along with access control applications. The device offers unique advantages in terms of connectivity, technology, usage environment and ease of use. IP65, PoE, touchscreen and wireless connectivity offer foolproof Access Control and Time-Attendance solutions for organizations. With MiFare Classic Card module alongside biometrics, COSEC VEGA FAM gives the best for organizations along with biometric credentials.
Finger and MiFare Card Based Biometric Door Controller
COSEC VEGA FAM
- Multi-Credential Support – Fingerprint, BLE, MiFare Classic Card, PIN
- Massive Storage Capacity – 50,000 Users, 5,00,000 Event Logs
- Finger Template Storage:- 1:N Mode: 9,600,1:1 Mode: 1,00,000
- Multi-Connectivity Options – Wi-Fi, PoE, Ethernet, BLE, USB, 3G/4G/LTE
- 3.5” TFT Touchscreen Display
- Suitable for Outdoor Applications with IP65 Rating
- Suitable for Access Control and Time-Attendance Applications
- Dimensions (mm): Width 91 X Height 186 X Depth 38
100 in stock
SPECIFICATIONS
SPECIFICATIONS
| Credential Support | Bluetooth (BLE), Fingerprint, RFID Card, PIN, Face (with Compatible Hardware) |
| Fingerprint Sensor | Optical |
| Templates Capacity | 9600 (1: N mode), and 1,00,000 (1:1 mode) |
| Templates Per User | Up to Ten |
| Cards Per User | Up to Two |
| Type of Card | EM Prox,MIFARE Classic®, and HID iCLASS (Card Module is required) |
| User Capacity | 50,000 |
| Display | 3.5″ TFT Display with Capacitive Touch Panel |
| CommunicationPort | Ethernet, Wi-Fi, Mobile Broadband (3G/4G Using USB Dongle), Built-in Bluetooth (8m Range – For Mobile Applications) |
| Built-in PoE | Yes |
| Built-in Wi-Fi | Yes |
| USB | One USB Port (for Data Transfer and Mobile Broadband) |
| Micro SD Card | Yes (16GB) |
| Event Buffer | 5,00,000 |
| Exit Switch Port | Yes |
| Exit Reader | Yes |
| Reader Interface Types |
RS-232 and Wiegand |
| Reader Power Output |
Internal 12VDC @ 0.5A or External |
| Door Status Sense | Programmable NO, NC, Supervised |
| Door Lock Relay | Relay SPDT, Form C, 1A @ 30VDC |
| Door Lock Power | Internal 12VDC @ 0.5A or External |
| Aux-In | Programmable NO, NC, Supervised |
| Aux-Out | Relay SPDT, Form C, 1A @ 30VDC |
| Tamper Detection | Yes |
| Input Power | 12VDC @ 2A |
| Operating Temperature |
0° C to +50°C (32°F to 122°F), |
| Humidity | 5% to 95% RH Non-condensing |
| IP65 | Verified |
| STQC Certified | No |
| Certification | CE,FCC PART15B(VOC),BIS,ROHS |
| Dimensions (mm) | 91X186X38 |
| Weight (kgs) | 0.54 |

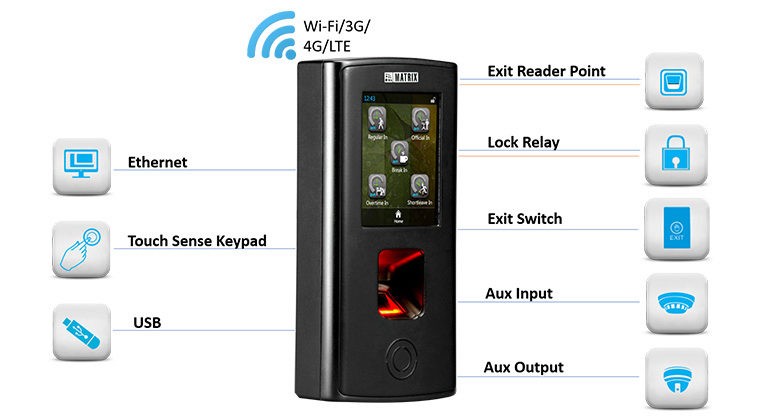

Application Diagram
DOWNLOADS
DOWNLOADS
Datasheet
|
