COSEC ARGO CAM – MiFare Classic Card Based Ultra Fast Door Controller is a performance, design, and engineering wonder that will revolutionize the way organizations resolve security challenges of protecting valuable assets and employee. It is an intelligent next generation card based door controller with an enhanced 3.5’’ IPS Touchscreen LCD for a visually splendid experience.
The Performance and Elegance Redefined – COSEC ARGO CAM , with MiFare Classic card module, is an universal device for multiple applications such as Access Control, Time-Attendance, Cafeteria management and Job Processing & Costing that removes the need of dedicated hardware for diverse solutions.
MiFare Classic Card Based Ultra Fast Door Controller
COSEC ARGO CAM200
- Multi-Credential Support – BLE, MiFare Classic Card, Pin
- Massive Storage Capacity – 50,000 Users, 5,00,000 Event Logs
- Multi-Connectivity Options – Wi-Fi, PoE, Ethernet, BLE, USB, 3G/4G/LTE
- Experience Intuitive User Interface with Ultrafast Identification
- Suitable for Access Control and Time-Attendance Applications
- Dimensions (mm): Width 74 x Height 186 x Depth 50
100 in stock
Description
SPECIFICATIONS
SPECIFICATIONS
Credential Support | |
---|---|
PIN | Yes |
Card | ARGO CAM: MIFARE Classic, DESFire EV1 and EV2(Read/Write) |
BLE – Mobile | Yes |
Capacity | |
User Profiles | 50,000 |
Event Logs | 500,000 |
General Specification | |
Weight | 550gms (1.12 lbs) |
Display | 3.5″ IPS LCD (Touch Screen) |
Display Resolution | 480 x 320 Pixel |
Gorilla Glass | Yes (Gorilla Glass 3) |
CPU | 800 MHz ARM cortex A8 based processor |
RAM | 512 MB DDR3 |
Flash Memory | 512 MB |
SD Card | Yes (16 GB) |
Tamper Detection | Yes |
Speaker | No |
Buzzer | Yes |
Ingress Protection | IP65 |
Vandal Proof | IK06 |
Certificate | CE, FCC, BIS, RoHS |
Operating Temperature | 0°C to 50°C |
Storage Temperature | -20°C to 60°C |
Humidity | 5% to 95 % RH Non-Condensing |
Communication | |
Ethernet | Yes (10/100 Mbps – 1 port) |
PoE | Yes (IEEE 802.3 af) |
WiFi | Yes (802.11 b/g/n) |
3G/4G/LTE | Yes (Additional USB Modem) |
BLE | Yes (8m Range) |
USB | Yes (USB 2.0) Micro USB-Type B |
Interface | |
Exit Switch Interface | Yes |
External Reader Support | Yes (MATRIX and 3rd Party) |
External Reader | Interface RS232 WiegandPower 12VDC @ 0.5ALED and Buzzer Control Allowed – GREEN LED Buzzer |
Wiegand | Yes (Selectable IN/OUT)
IN: 26 Bit format |
Door Lock Relay | Yes (30VDC @ 2A, Dry Contacts NO/NC/COM) |
Door Lock Power | Internal PoE Power: 12VDC @ 0.250 A Internal Adapter Power 12VDC @ 0.5 A External Power 12VDC @ 2A |
AUX IN / AUX OUT | NO |
Installation | |
Wall Mount | Yes |
Flush Mount | Yes |
Accessories | |
Power Adapter | 12VDC @ 2A (CE, FCC, BIS) |
Mounting Options | Flush Mount: Metal Bracket with Screws Surface Mount: Plastic Back Cover with Screws |
Battery Backup | No |

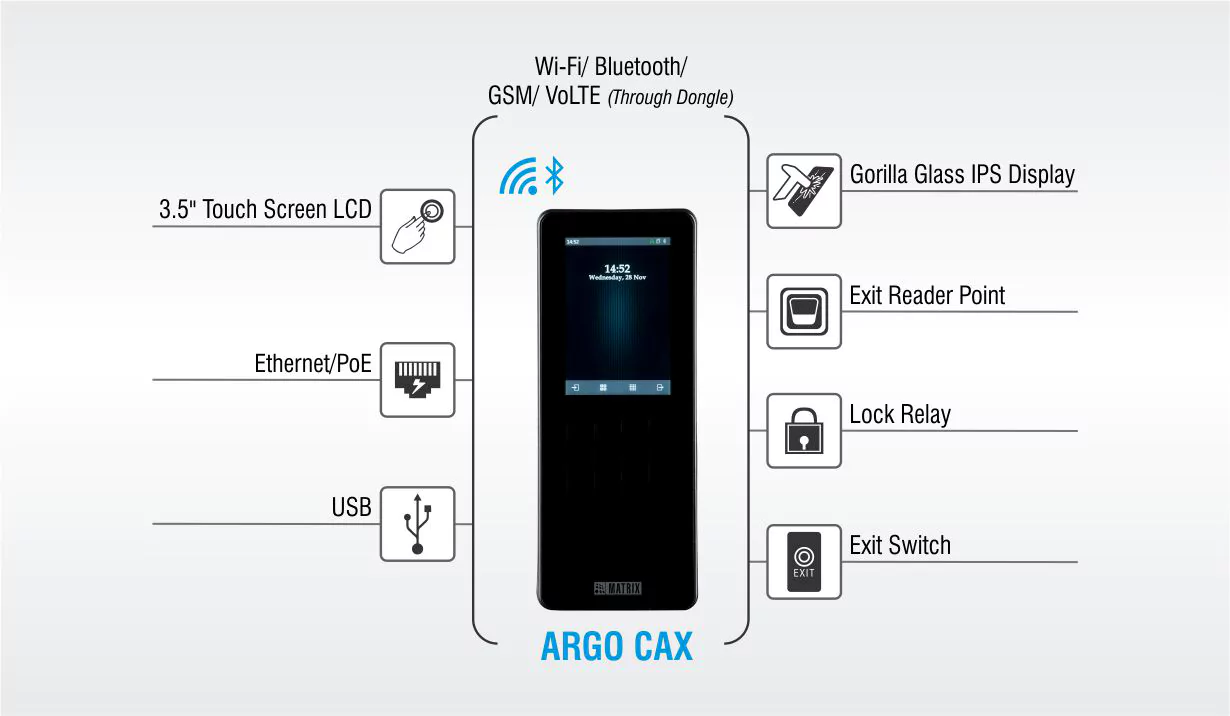

Application Diagram ![](https://www.matrixcomsec.com/product-catalogue/wp-content/uploads/2022/04/Cosec-Argo-Cax.webp)
![](https://www.matrixcomsec.com/product-catalogue/wp-content/uploads/2022/04/Cosec-Argo-Cax.webp)
