COSEC VEGA CAI, HiD iClass Card Based Touch Screen Door Controller from VEGA series, is specifically built for demanding enterprise to meet the functional needs of an organization’s employee time tracking system along with access control applications. The device offers unique advantages in terms of connectivity, technology, usage environment and ease of use. IP65, PoE, touchscreen and wireless connectivity offer foolproof Access Control and Time-Attendance solutions for organizations. With HiD iClass Card module, COSEC VEGA CAI gives the best for organizations.
HiD iClass Card Based Touch Screen Door Controller
COSEC VEGA CAI
- Multi-Credential Support – BLE, HiD iClass Card, PIN
- Massive Storage Capacity – 50,000 Users, 5,00,000 Event Logs
- Multi-Connectivity Options – Wi-Fi, PoE, Ethernet, BLE, USB, 3G/4G/LTE
- 3.5” TFT Touchscreen Display
- Suitable for Outdoor Applications with IP65 Rating
- Suitable for Access Control and Time-Attendance Applications
- Dimensions (mm): Width 91 X Height 186 X Depth 38
100 in stock
SPECIFICATIONS
SPECIFICATIONS
| Credential Support | Bluetooth (BLE), Fingerprint, RFID Card, PIN, Face (with Compatible Hardware) |
| Cards Per User | Up to Two |
| Type of Card | HID iCLASS (Card Module is required) |
| User Capacity | 50,000 |
| Display | 3.5″ TFT Display with Capacitive Touch Panel |
| Communication Port | Ethernet, Wi-Fi, Mobile Broadband (3G/4G Using USB Dongle), Built-in Bluetooth (8m Range – For Mobile Applications) |
| Built-in PoE | Yes |
| Built-in Wi-Fi | Yes |
| USB | One USB Port (for Data Transfer and Mobile Broadband) |
| Micro SD Card | Yes (16GB) |
| Event Buffer | 5,00,000 |
| Exit Switch Port | Yes |
| Exit Reader | Yes |
| Reader Interface Types | RS-232 and Wiegand |
| Reader Power Output | Internal 12VDC @ 0.5A or External |
| Door Status Sense | Programmable NO, NC, Supervised |
| Door Lock Relay | Relay SPDT, Form C, 1A @ 30VDC |
| Door Lock Power | Internal 12VDC @ 0.5A or External |
| Aux-In | Programmable NO, NC, Supervised |
| Aux-Out | Relay SPDT, Form C, 1A @ 30VDC |
| Tamper Detection | Yes |
| Input Power | 12VDC @ 2A |
| Operating Temperature | 0° C to +50°C (32°F to 122°F), |
| Humidity | 5% to 95% RH Non-condensing |
| IP65 | Verified |
| STQC Certified | No |
| Certification | CE,FCC PART15B(VOC),BIS,ROHS |
| Dimensions (mm) | 91X186X38 |
| Weight (kgs) | 0.54 |

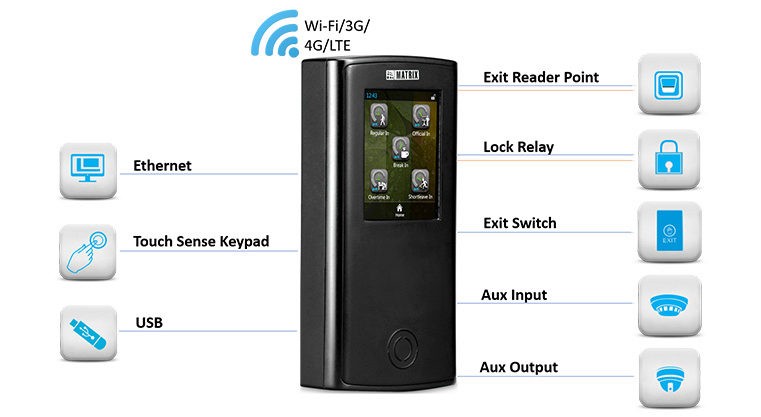

Application Diagram
DOWNLOADS
DOWNLOADS
Datasheet
|
