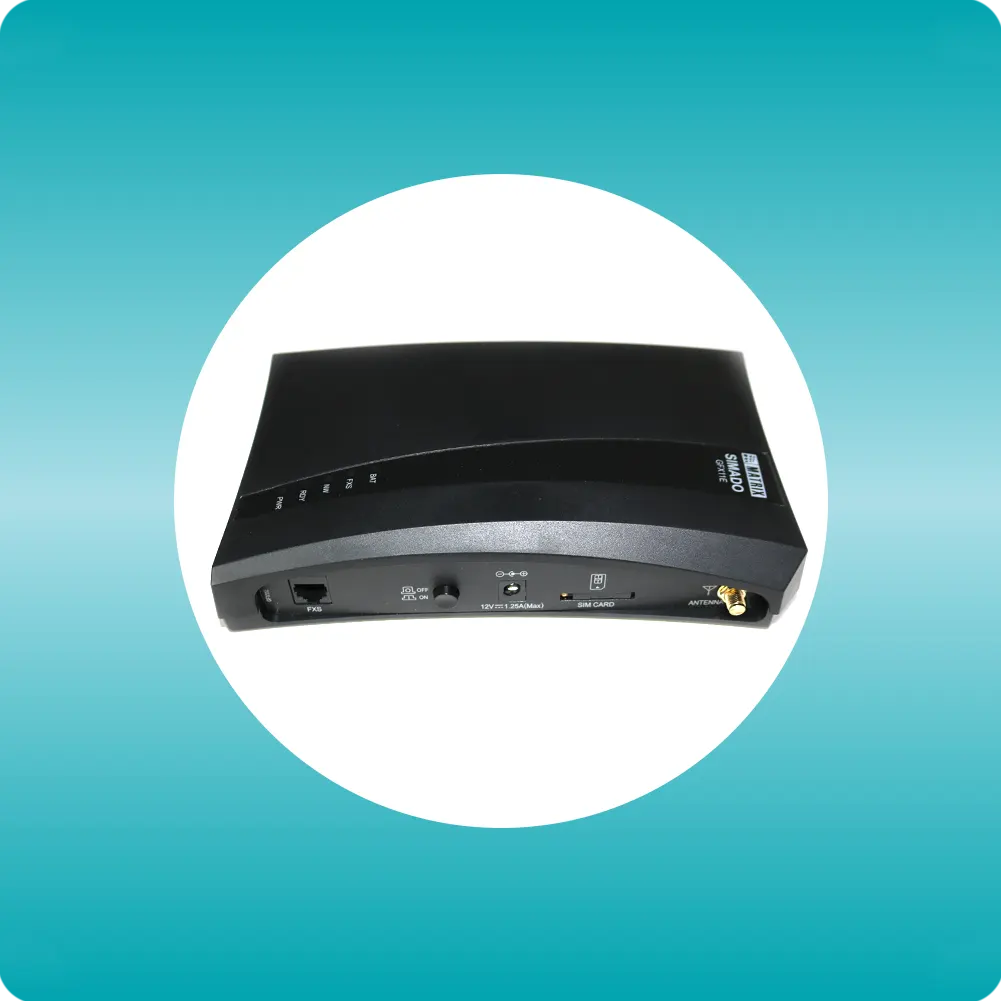

SIMADO GFX11E is a specialized GSM FCT that enables critical communication during emergency situations such as elevator breakdowns and power cuts.
GFX11E establishes a communication link with the help center to allow a user in trouble to get immediate help.
SIMADO GFX11E can be used in various application areas such as elevators, ATM Centers, arcades, hospitals, shopping malls, and senior citizens’ homes.
GSM FCT for Emergency Applications
SIMADO GFX11E
- Built-in Battery Back-up, Quad-Band, Automatic Number Translation, Allowed & Denied Lists
- Built-in Ports: 1 GSM Port, 1 FXS Port
- Battery Type: NI-MH AAA 7.2V/800mA
- Type of Antenna: SMA (Panel Mount)
- Power Supply: 12V DC (Adaptor Based)
100 in stock
Description
SPECIFICATIONS
SPECIFICATIONS
| FXS Port Specifications | |
| Connection | RJ11 |
| Pulse Dialing | 10 PPS +/- 10%, Make/Break = 33:67ms |
| DTMF Dialing and Reception | ITU-T Q.23 and Q.24 |
| Off Hook AC Impedance | 600Ω |
| Loop Feed | 35mA (Max.) |
| Loop Limit | 270Ω (Excluding telephone) |
| On-Hook Voltage (Tip-Ring) | -48V nominal |
| Return Loss | >18dB |
| Longitudinal Balance | >40dB |
| Ringing Voltage | Trapezoidal: 55Vrms@25Hz |
| Caller ID Presentation | DTMF, FSK ITU-T V.23 and FSK Bellcore 202A |
| Answer Signaling | None, Polarity Reversal |
| Disconnect Signaling | None, Polarity Reversal and Open Loop Disconnect |
| Disconnect Signaling Time | 500ms/Programmable Timer |
| Protection | Solid-state over voltage Secondary Protection |
| GSM Frequency Band | |
| Quad Band | GSM 850, EGSM900, DCS1800, PCS1900 |
| Tri Band | WCDMA 850/1900/2100 MHz |
| GSM Engine Specifications | |
| Compliant | ETSI GSM Phase 2/2+ |
| SIM Interface | 1.8V, 3V |
| RF Transmission Power | Class 4 (2W) at GSM 850 and EGSM900 MHz band, Class 1(1W) at DCS1800 and PCS1900 MHz band, Class 3 (0.25W) at WCDMA 850/1900/2100 |
| RF Sensitivity | Better than -102dBm at GSM850/ EGSM900/ DCS1800/ PCS1900, Better than -106dBm at WCDMA 850, Better than -108dBm at WCDMA 1900/2100 |
| Speech Gain (Transmit and Receive) | Configurable |
| Physical Parameters | |
| Supply Input | 12VDC @1.25A (Actual consumption), Through External Adaptor (100-240VAC, 47-65Hz) supplied by Matrix |
| Power Consumption | 5W (Typical) |
| Connector | Casio DC power Jack |
| Internal Battery | NI-MH AAA 7.2V/800mA |
| Battery Back-up | 4 hours (idle mode), 2 hours (talking mode) |
| LED Indications | Battery (BAT), Power Supply (PWR), Network (NW), SIM (RDY), FXS Port (FXS) |
| Mechanical Parameters | |
| Dimensions (WxHxD) | 13.35 x 19.8 x 4.46 cm (5.26” x 7.80” x 1.76”) |
| Unit Weight | 0.4 kg. Approx. |
| Shipping Weight | 0.9 kg. Approx. |
| Mounting | Wall Mounting or Table-top |
Application Diagram
