Name: Finger and HiD iClass Card Based Touch Screen Reader
SKU: 3000001378
Availability: InStock

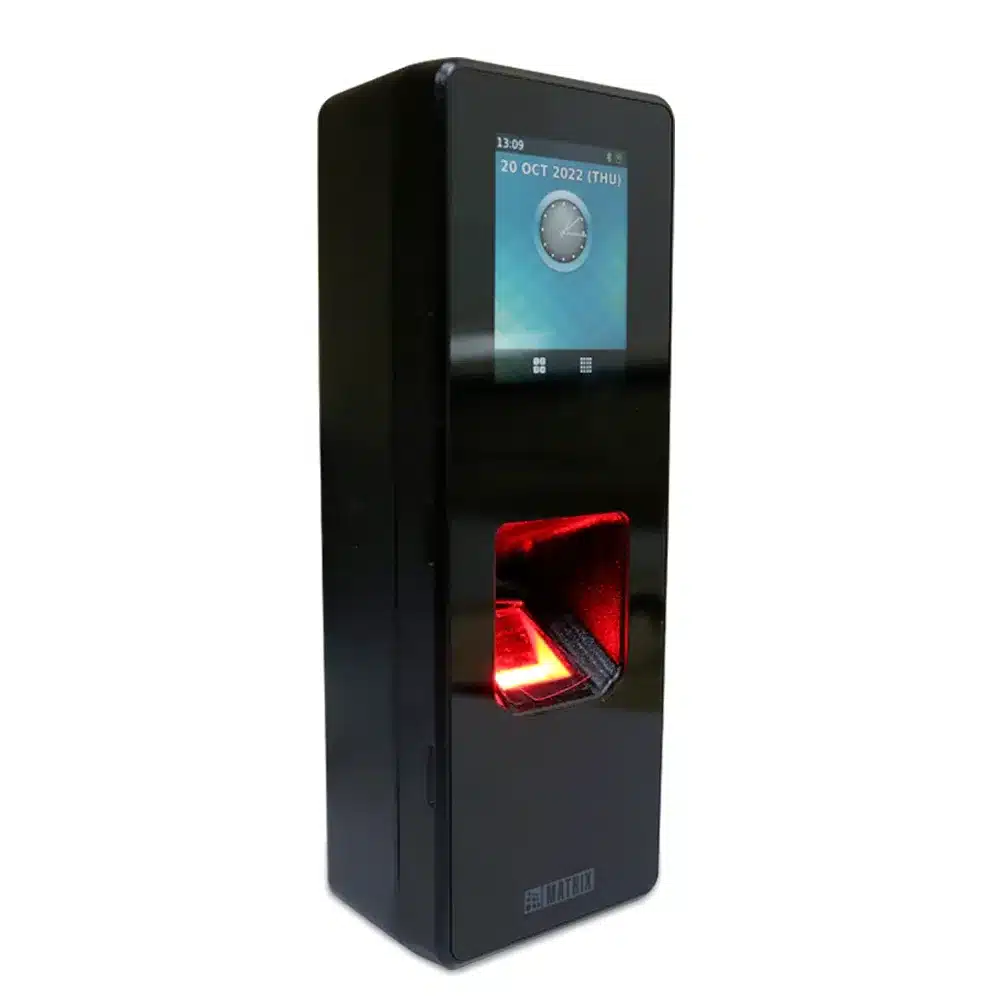

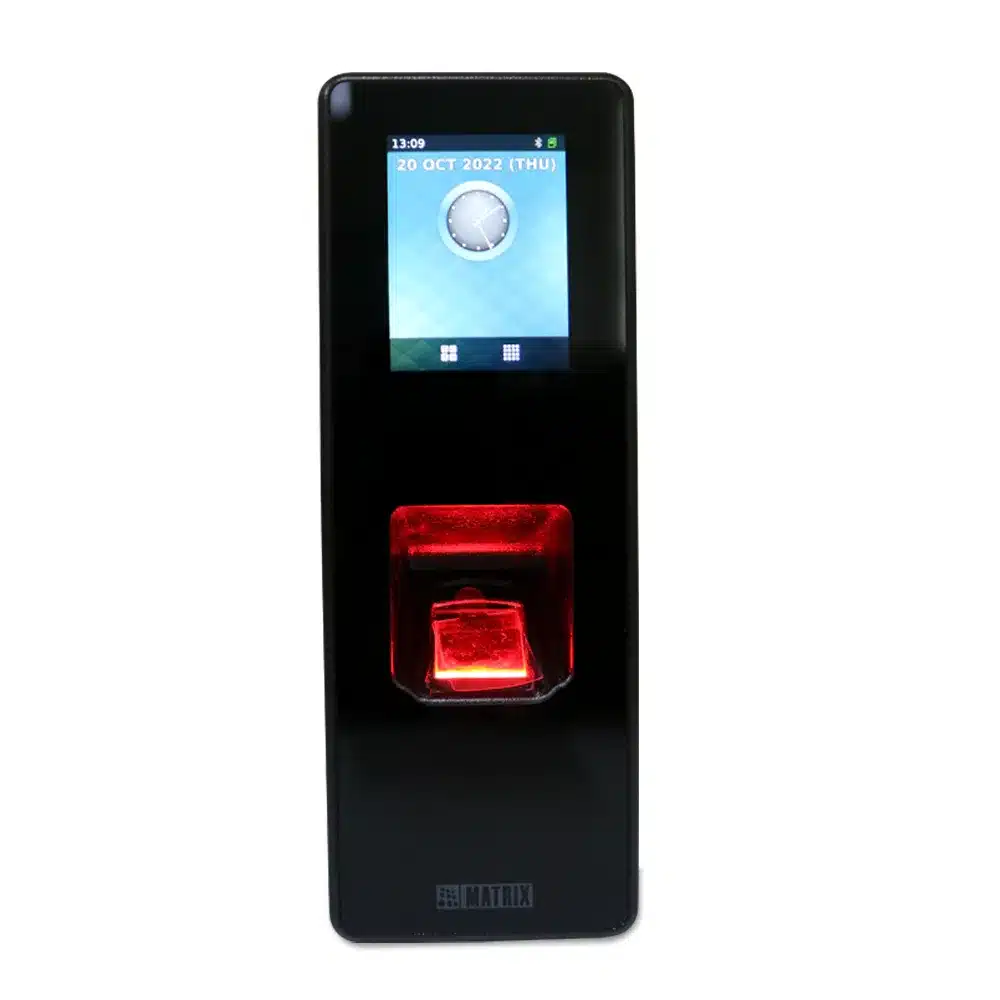

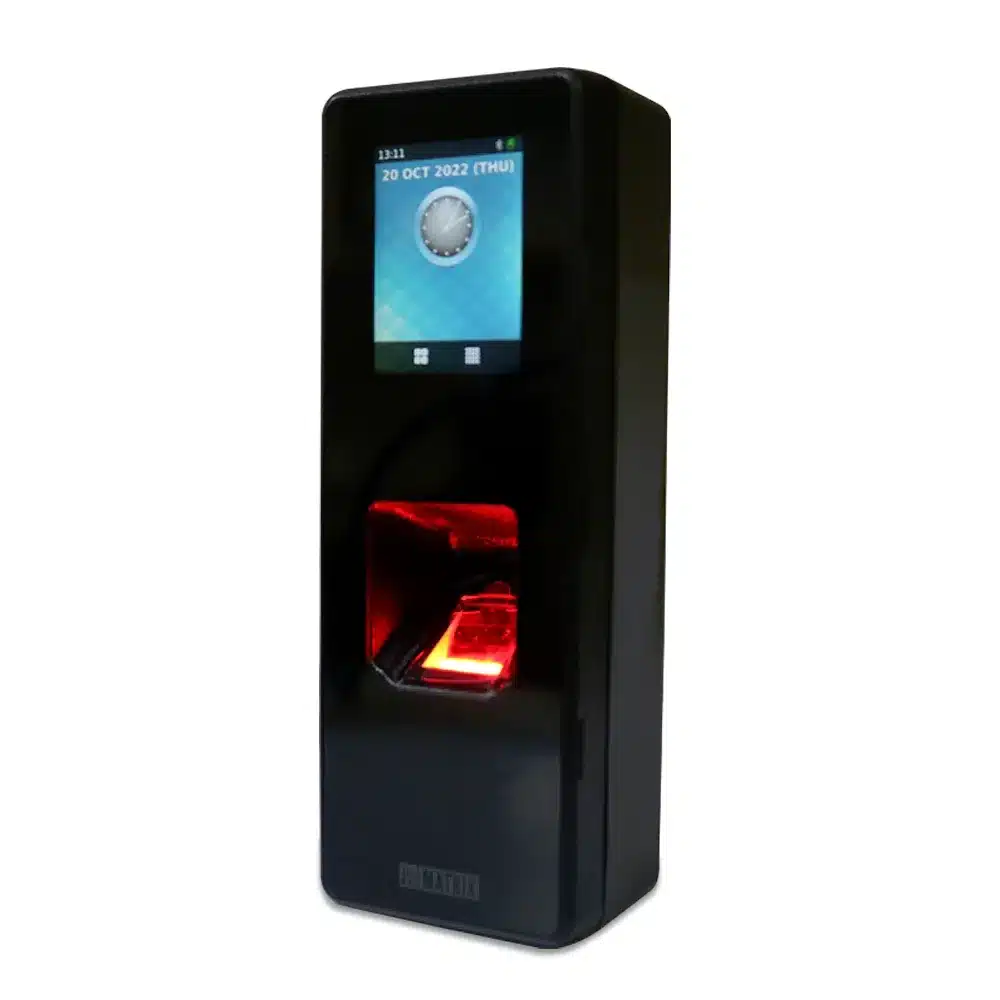

Finger and HiD iClass Card Based Touch Screen Reader

COSEC ATOM RD300SFI

Multi-Credential Support – Fingerprint, Pin, Mobile Authentication, and HiD iClass Card
Finger Template: 1:N Mode: 25,000
Supports Multi-factor Credential Support
Supports Third Party Application via Weigand Interface
Suitable for Access Control Applications
Dimensions (mm): Width 56 x Height 153 x Depth 37

100 in stock

SKU: 3000001378 Categories: ACTA, Hardware

Description
SPECIFICATIONS
DOWNLOADS

Description

COSEC ATOM RD300SFI – Finger and HiD iClass Card Based Touch Screen Reader satisfies all the access control requirements present across the markets. Maintaining an equilibrium between utility and aesthetics, COSEC ATOM RD300SFI complements corporate workspaces’ performance, securing them with world-class access control.

Beyond scratch-protection and enhanced looks, it integrates third-party controllers via the Weigand interface. Manufactured with international standards as the base, it perfectly meets all the applications, both indoor and outdoor. Alongwith Fingerprint, HiD iClass Card Support and PIN, Built-in Wi-Fi and Bluetooth options make this contactless card reader future-proof!

SPECIFICATIONS

Specifications	ATOM RD300SF
GENERAL
PIN	Yes
Card	Yes
Fingerprint	Yes
BLE – Mobile	Yes
User capacity	Depends on the master device
Template Capacity	25,000(1:N Mode)
Event Logs	Depends on the master device
Sensor Name	SFM6030-OC6
Sensor Surface	Scratch Free
Resolution	500 DPI
Sensing Area	16.0mm X 18.0mm
Dimensions (H X W X D)	Wall Mount:153mm X 56 mm X 37mm Flush Mount: 183mm X 71 mm X 37mm
Weight	330grms (0.72 lbs)
Display	2” Touch screen Display
Display Resolution	320 x 240 Pixel
Gorilla Glass	Yes (Gorilla Glass 3)
Keypad	Yes (In-Display Keypad)
CPU	AM3352
RAM	256 MB
Flash	256 MB
USB	No
SD Card	No
Tamper Detection	Yes
Speaker	No
Buzzer	Yes (12V Magnetic buzzer)
LEDs	No
Ingress Protection (IP65)	Yes
Vandal Proof (IK06)	Yes
Certificate	CE, FCC, ROHS, BIS
Operating Temperature	-20°C to + 55 °C
Humidity	5% to 95 % RH Non-Condensing
Ethernet	No
PoE	No
WiFi	Yes (802.11 b/g/n)
BLE	Yes
Wiegand	Yes
RS232	Yes
RS485	Yes
OSDP	Yes^*
Wall Mount	Yes
Flush Mount	Yes
Variants
With HID i-Class	Mifare Classic/Desfire EV1 & EV2 /combo cards/ NFC TagVariant Name: ATOM RD300SFI

DOWNLOADS

Datasheet

Brochure

Watch video

360 product view
