COSEC ARGO FOM – Finger and MiFare Classic Card Based Ultra Fast Biometric Door Controller is a performance, design, and engineering wonder that will revolutionize the way organizations resolve security challenges of protecting valuable assets and employee. It is an intelligent next generation fingerprint based door controller with an enhanced 3.5’’ IPS Touchscreen LCD for a visually splendid experience.
The Performance and Elegance Redefined – COSEC ARGO FOM , with MiFare Classic card module, is an universal device for multiple applications such as Access Control, Time-Attendance, Cafeteria management and Job Processing & Costing that removes the need of dedicated hardware for diverse solutions.
Finger and MiFare Classic Card Based Ultra Fast Biometric Door Controller
COSEC ARGO FOM212
- Multi-Credential Support – Fingerprint, BLE, MiFare Classic Card, Pin
- Massive Storage Capacity – 50,000 Users, 5,00,000 Event Logs
- Finger Template Capacity:- 1:N Mode: 25,000,1:1 Mode: 1,00,000
- Multi-Connectivity Options – Wi-Fi, PoE, Ethernet, BLE, USB, 3G/4G/LTE
- Experience Intuitive User Interface with Ultrafast Identification
- Suitable for Access Control and Time-Attendance Applications
- Dimensions (mm): Width 74 x Height 186 x Depth 50
100 in stock
Description
SPECIFICATIONS
SPECIFICATIONS
| GENERAL | |
|---|---|
| Credential Support | Bluetooth (BLE), Fingerprint, RFID Card, PIN, Face (with Compatible Hardware) |
| IP Rating | IP65 (With wall mounting installation condition and flush mounting with recommended installation surface) |
| RF Option | Smart Cards – MIFARE Classic® Proximity Cards – EM Prox and HID Prox (Separate variant for each card type. HID PROX requires HID iCLASS type) |
| CAPACITY | |
| Maximum Users | 50,000 |
| Maximum Templates | 25,000 in 1: N Mode and 100,000 in 1:1 Mode (Optical sensing technology) |
| Event Buffer | 500,000 |
| Templates per User | Up to 10 (Single template per finger mode) Up to 5 (Dual template per finger mode) |
| Cards per User | Up to 2 |
| COMMUNICATION | |
| Wi-Fi | Yes (802.11 b/g/n) |
| Bluetooth | Built-in Bluetooth (8m Range – For Mobile Applications) |
| Ethernet | Yes (10/100 Mbps) |
| PoE | Yes (IEEE 802.3 af) |
| RS-232 | Yes |
| Mobile Broadband | Yes |
| Wiegand | Wiegand IN/OUT Available |
| USB | 1 Micro-USB Port (Data transfer and 2G-3G dongle) |
| INTERFACE | |
| Exit Switch Port | Yes |
| Door Status Sense | Programmable NO, NC, Supervised |
| Door Lock Relay | 30V DC @ 2 A, Form C, SPDT Relay |
| Door Lock Power | Internal 12V DC @ Max. 0.5A or External (*External power supply is recommended for >500ma locks supply) |
| Aux-In | No |
| Aux-Out | No |
| Reader Interface Types | RS-232 and Wiegand IN/OUT |
| Micro SD Card | Yes (Inbuilt 8GB) |
| HARDWARE | |
| CPU | 800 MHz ARM Cortex A8 based Processor |
| Memory | 512 MB Flash + 512 MB DDR3 RAM |
| Display | 3.5″ IPS Display with Capacitive Touch Panel with Gorilla Glass |
| Display Resolution | 320 x 480 Pixel |
| Buzzer | Yes |
| Operating Temperature | 0°C to +50°C |
| Humidity | 5% to 85% RH Non-Condensing |
| Tamper Detection | Yes |
| Power | 12V DC @ 2A |
| Power to Door Lock | 12V DC @ 0.5A (Power to external Lock from Device) |
| Dimensions (W x H x D) | 74mm x 186mm x 50mm |
| Weight | 0.549Kgs (1.21Lbs) |
| COMPATIBILITY | |
| System Integration | API for Software Integration |
| Operational Modes | Direct Door with COSEC CENTRA Server Panel Door with COSEC PANEL LITE V2 |

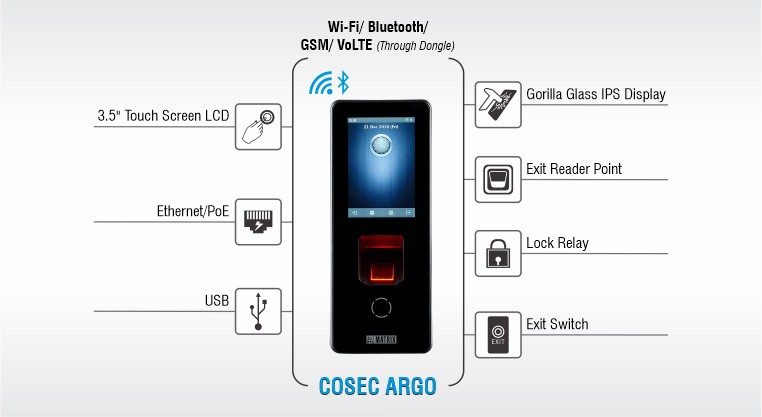

Application Diagram
DOWNLOADS
DOWNLOADS
Datasheet
|
Brochure
|
