COSEC ARGO FACEI – Face and HiD iClass Card Based Smart Door Controller an instant Face-recognition Door Controller unifying aesthetics, hygiene standards, and technology. With the best of the technology inclusive of top-class processors, a deep learning algorithm, and two in-built cameras, it takes over the dual roles of an access device and a surveillance camera.
A Tech marvel designed for elegant Performance, COSEC ARGO FACEI, with HiD iClass card support, brings in contactless authentication, high-speed Identification eliminating grouping, and accurate imaging even in low light conditions, to name a few benefits.
Face and HiD iClass Card Based Smart Door Controller
COSEC ARGO FACEI
- Multi-Credentials inclusive of Contactless Technology – Face, BLE, PIN, and HiD iClass Card
- Multi-Connectivity Options – Wi-Fi, PoE, Ethernet, BLE, USB, 3G/4G/LTE
- Massive Storage Capacity – 50,000 Users, 2,00,000 Face Templates
- Deep Face Learning Algorithm with Adaptive Understanding
- Weatherproof and Vandal Resistant
- Suitable for Access Control and Time-Attendance Applications
- Dimensions (mm): Width 74 x Height 186 x Depth 50
100 in stock
Description
SPECIFICATIONS
SPECIFICATIONS
| CREDENTIAL | |
|---|---|
| Human Face | Yes |
| PIN | Yes |
| BLE – Mobile | Yes |
| CAPACITY | |
| User Profiles | 50,000 |
| Face Templates | 200,000 |
| Max. Templates Per User | 30 |
| Event Logs | 500,000 |
| FACE RECOGNITION | |
| Algorithm | Deep Learning-based Face Recognition |
| Fake Face Detection | Yes |
| Face Identification | 1:200,000 in < 1 sec 1:1 in < 0.5 sec |
| Face Enrolment | Enrolment Station Upload Images |
| Recognition Distance | 30cm – 120cm (0.3m – 1.2m) |
| Recognition Height | 140cm – 198cm (1.4m – 1.98m) |
| GENERAL SPECIFICATIONS | |
| Dimensions (HxWxD) | 186mm x 74 mm x 50mm (7.3” x 3” x 2 “) |
| Weight | 650gms (1.433 lbs) |
| Display | 3.5″ IPS LCD (Touch Screen) |
| Display Resolution | 480 x 320 Pixel |
| Gorilla Glass | Yes (Gorilla Glass 3) |
| CPU | Quad-Core ARM Cortex-A7 @ 1.5 GHz |
| GPU | Built-in 2 TOPS Neural Network Computing Performance |
| RAM | 2 GB DDR4 |
| Flash Memory | 16 GB eMMC |
| SD Card | No |
| Tamper Detection | Yes |
| Buzzer | Yes |
| IR LEDs | Yes |
| Ingress Protection | IP65 |
| Vandal Proof | IK06 |
| Certificate | CE, FCC, BIS, UL, RoHS |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 5% to 95 % RH Non-Condensing |
| CAMERA | |
| RGB Camera | 2MP Surveillance Grade, IR Blocked |
| Infrared Camera | 2MP Surveillance Grade, IR Band Pass |
| Camera Sensors | SONY IMX 307, EXMOR Technology, STARVIS Series |
| COMMUNICATION | |
| Ethernet | Yes (10/100 Mbps – 1 port) |
| PoE | Yes (IEEE 802.3 af) |
| WiFi | Yes (802.11 b/g/n) |
| 3G/4G/LTE | Yes (Additional USB Modem) |
| BLE | Yes (8m Range) |
| USB | Yes (USB 2.0) Micro USB-Type B |
| INTERFACE | |
| Exit Switch Interface | Yes |
| External Reader Support | Yes (MATRIX and 3rd Party) |
| External Reader | Interface
LED and Buzzer Control |
| Wiegand | Yes (Selectable IN/OUT) IN: 26 Bit format OUT: Configurable |
| Door Lock Relay | Yes (30VDC @ 2A, Dry Contacts NO/NC/COM) |
| Door Lock Power | Internal PoE Power: 12VDC @ 0.250 A Internal Adapter Power 12VDC @ 0.5 A External Power 12VDC @ 2A |
| INSTALLATION | |
| Wall Mount | Yes – Plastic Back Cover with Screws |
| Flush Mount | Yes – Metal Bracket with Screws |
| Power Adapter | 12VDC @ 2A (CE, FCC, UL, BIS) |
| Card | |
| Proximity Cards | HID Prox (Separate variant for each card type. HID PROX requires HID iCLASS type) |

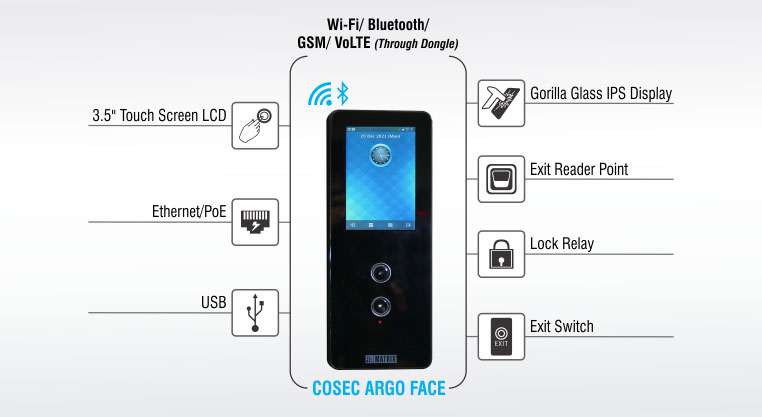

Application Diagram
DOWNLOADS
DOWNLOADS
Datasheet
|
Brochure
|
