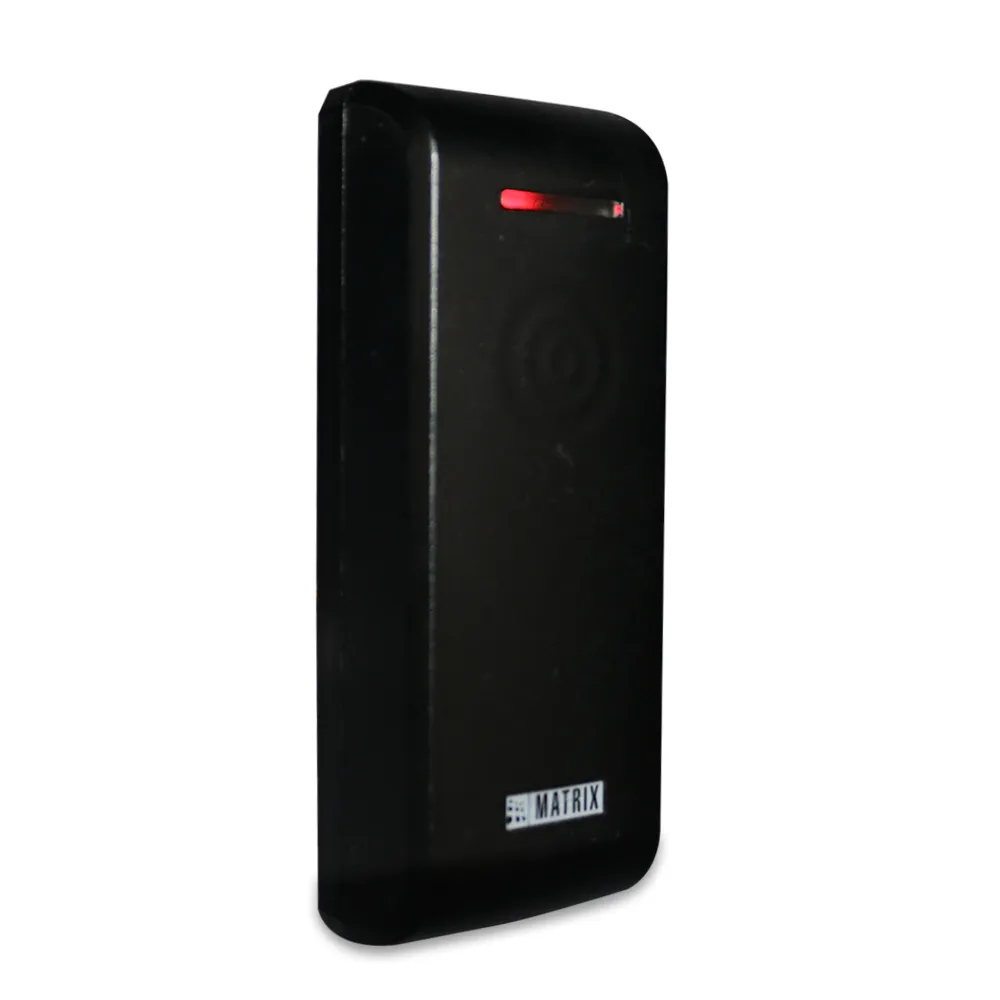

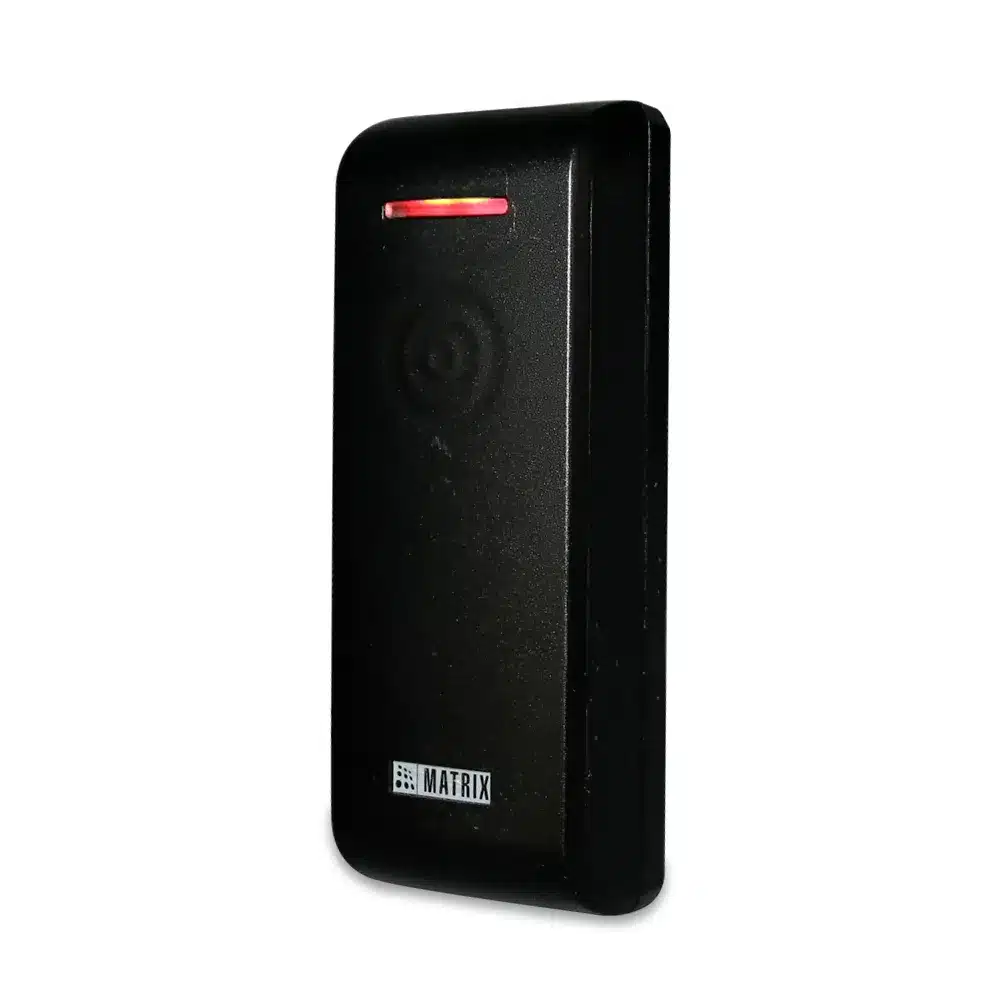

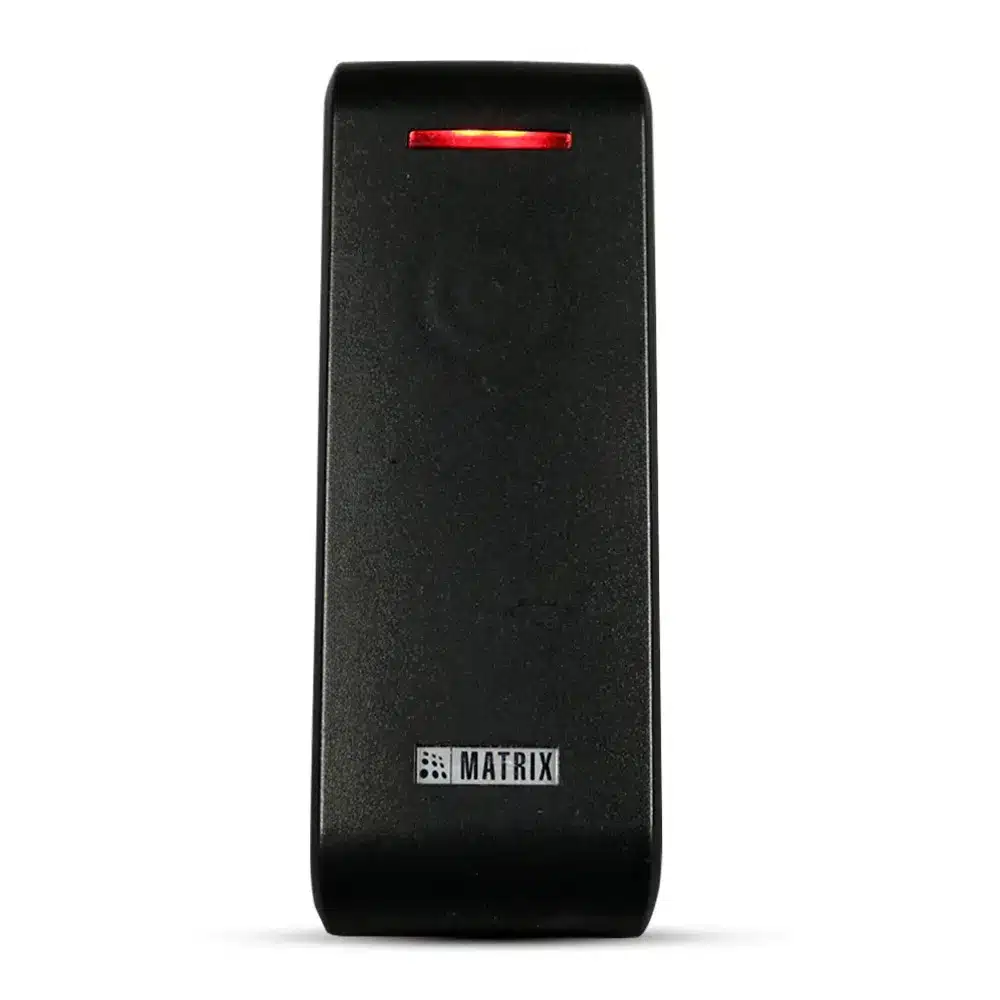

COSEC PATH RDCE, EM Proximity Card Based Compact Reader is a compact card based reader designed for modern organizations requiring focused access control. In particular, this variant uses EM Proximity card for RFID card authentication. Next, multiple connectivity options such as RS-232, RS-485, PoE ensure flexibility in operations. The IP65 design delivers a consistent performance even in harsh weather conditions.
EM Proximity Card Based Compact Reader
COSEC PATH RDCE
- Credential Support – EM Proximity Card
- Multi-Connectivity Options – RS-232, RS-485, PoE
- Compact Design with IP65 Rating
- Integration with Existing Security Infrastructure
- Buzzer Alert with Tri-color Status LED
- Suitable for Access Control Applications
- Dimensions (mm): Width 50.5 x Height 137 x Depth 34
100 in stock
SPECIFICATIONS
SPECIFICATIONS
| Credential Support | RFID Card |
| Types of Card | EM Prox |
| Communication | RS-485 and RS- 232 |
| Buzzer | Yes |
| LED | Single LED (Tri Color) |
| Input Power | 12 VDC @ 0.1A |
| Humidity | 5% to 85% RH Non-condensing |
| Operating Temperature | 0°C to + 50°C (32°F to 122°F) |
| Tamper Detection | Yes |
| IP65 | Verified |
| Dimension (mm) | 50.5X137X34 |
| Weight (kgs) | 0.27 |
DOWNLOADS
DOWNLOADS
Datasheet
|
