COSEC PATH DCCE, EM Proximity Card Based Compact Door Controller is a compact door controller designed for modern organizations. Supporting multiple credentials such as Bluetooth and RFID cards, these controllers fulfill the time-attendance and access control needs of modern organizations. In particular, EM Proximity cards are used for RFID authentication. Next, multiple connectivity options such as WiFi, Bluetooth, PoE ensure flexibility in operations. The IP65 design delivers a consistent performance even in harsh weather conditions.
EM Proximity Card Based Compact Door Controller
COSEC PATH DCCE
- Multi-Credential Support – BLE and EM Proximity Card
- Massive Storage Capacity – 5,00,000 Event Logs, 50,000 Users
- Multi-Connectivity Options – WiFi, Ethernet, Bluetooth, RS-232, RS-485, Wiegand
- Compact Design with IP65 Rating
- Buzzer Alert with Tri-color Status LED
- Suitable for Access Control and Time-Attendance Applications
- Dimensions (mm): Width 50.5 x Height 137 x Depth 34
100 in stock
SPECIFICATIONS
SPECIFICATIONS
| Credential Support | BLE and RFID Card |
| Card Type | EM Prox (COSEC PATH DCCE) |
| User Capacity | 10,000 |
| Cards Per User | Two |
| Events Buffer | 5,00,000 |
| Max. Users | 50,000 |
| Battery Backup | No |
| Ethernet | Yes (10/100Mbps) |
| PoE | Yes (IEEE 802.3 af) |
| Exit Switch | Yes |
| Door Status Sense | Yes (2 State) |
| Door Lock Relay | Form C and SPDT Relay (Max 1A@30 VDC) |
| Door Lock Power | Internal 12V DC @ 0.5 Amp |
| Reader Interface types | RS-232 & Wiegand IN/OUT |
| Buzzer | Yes |
| LED | Single LED (TriColor) |
| CPU | Cortex A8 800 MHz |
| Flash Memory | 512 MB |
| RAM Memory | 512 MB |
| Input Power | 12V DC @ 2A |
| Humidity | 5% to 95% RH Non – Condensing |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Tamper Detection | Yes |
| IP65 | Verified |
| Certification | CE and BIS |
| Dimension (mm) | 50.5X137X34 |
| Weight (kgs) | 0.18 |
| Wi-Fi | Yes (802.11 b/g/n) |

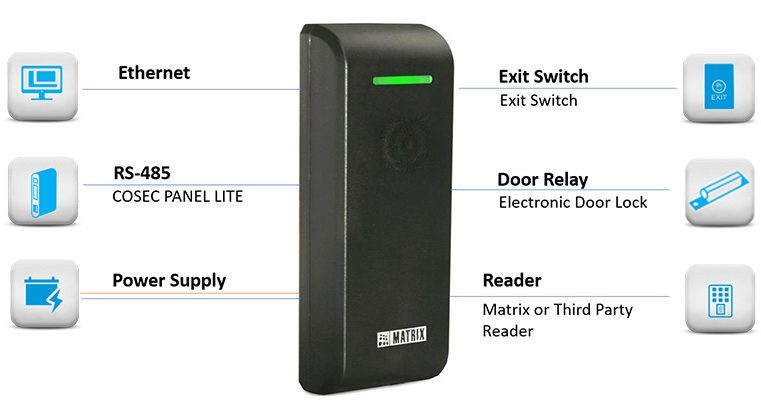

Application Diagram
DOWNLOADS
DOWNLOADS
Datasheet
|
