COSEC PATH DCFE, Finger and EM Proximity Card Based Compact Biometric Door Controller is a compact biometric door controller designed for modern organizations with fingerprint as its foremost credential. Supporting multiple credentials such as Fingerprint, Bluetooth and RFID cards, these controllers fulfill the time-attendance and access control needs of modern organizations. In particular, EM Proximity cards are used for RFID authentication. Next, multiple connectivity options such as WiFi, Bluetooth, PoE ensure flexibility in operations. The IP65 design delivers a consistent performance even in harsh weather conditions.
Finger and EM Proximity Card Based Compact Biometric Door Controller

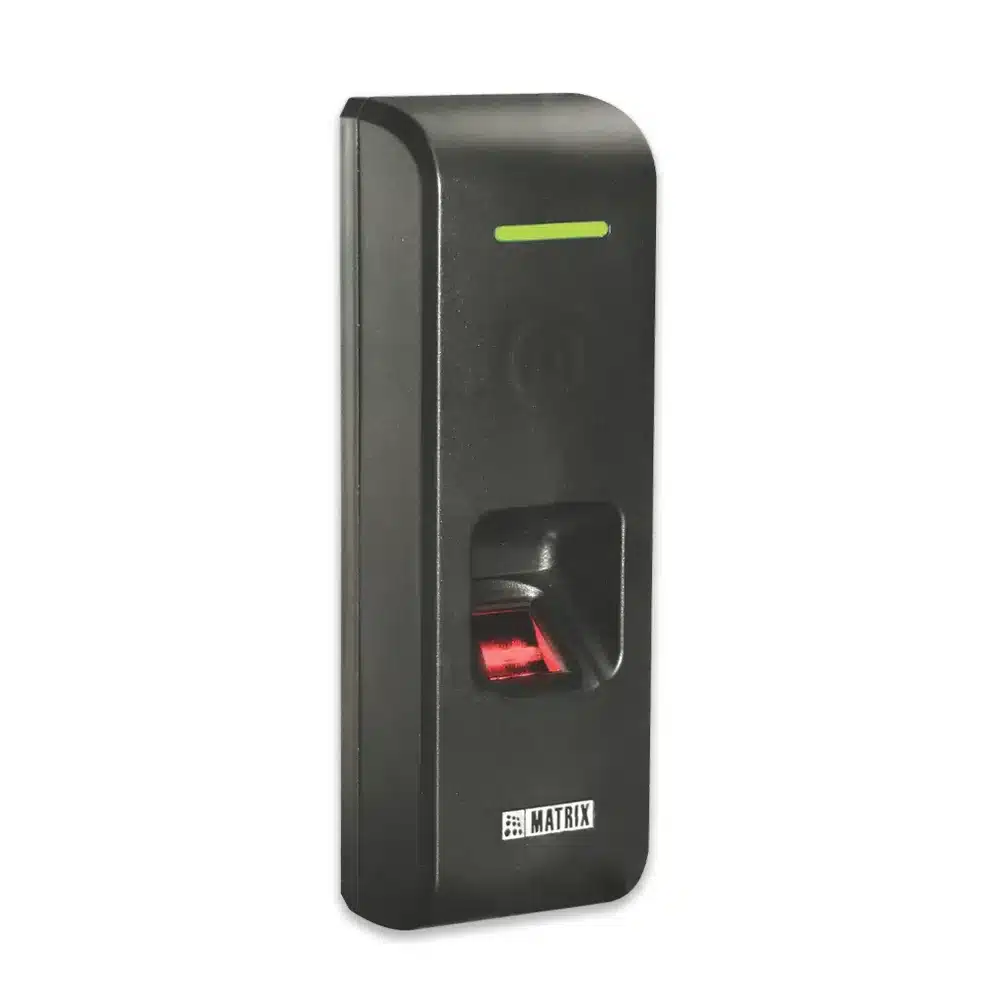

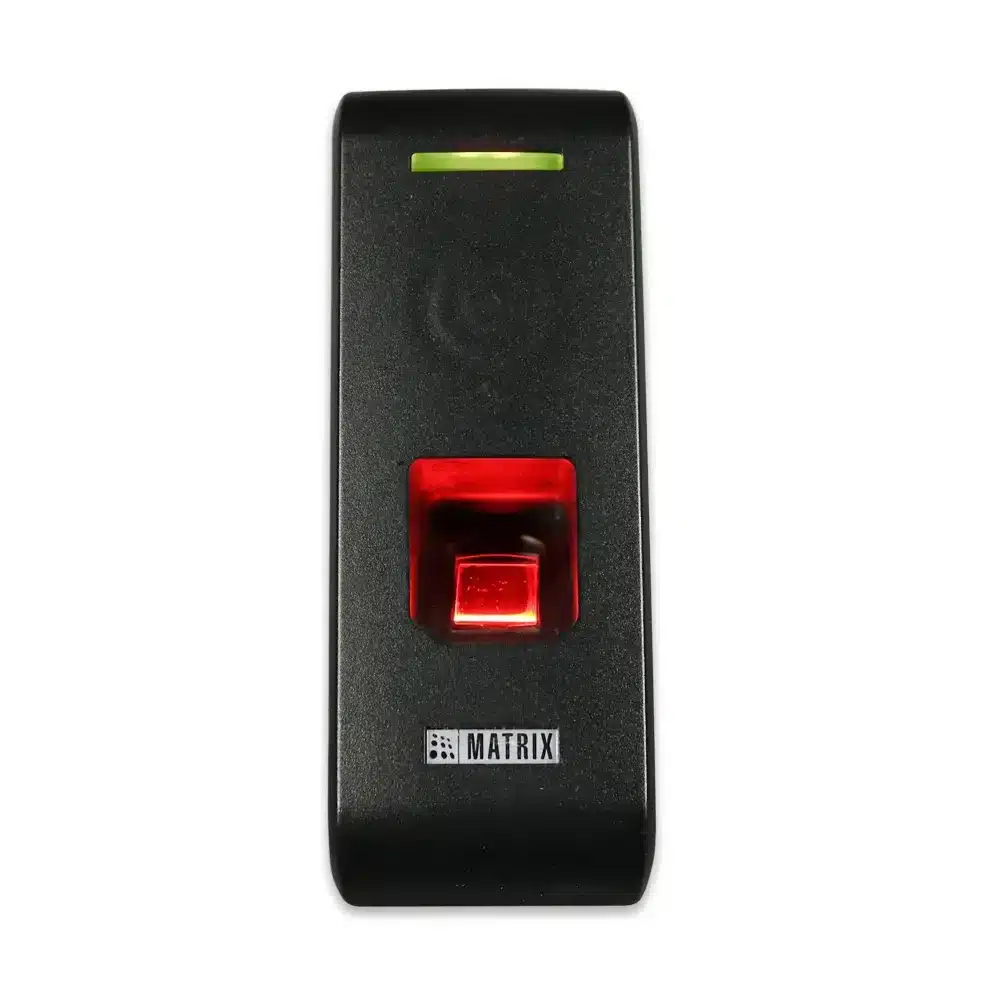

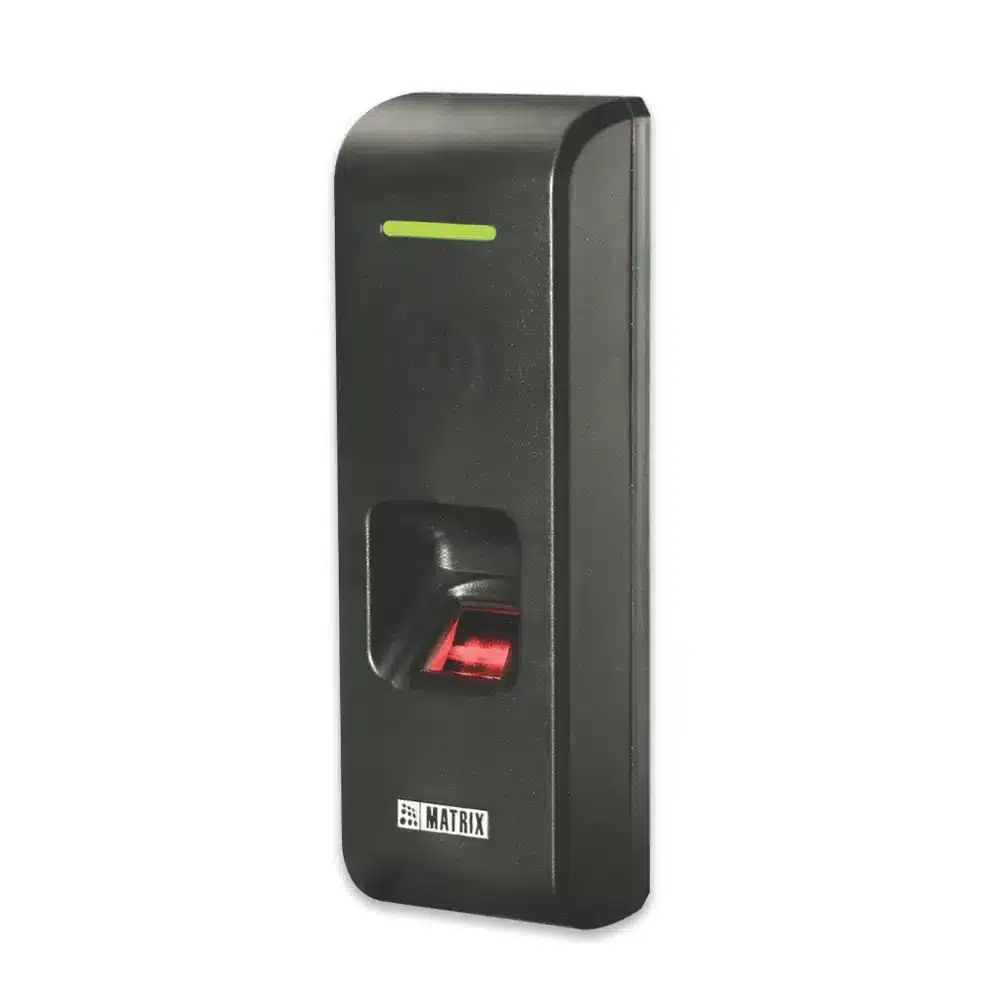

COSEC PATH DCFE
- Multi-Credential Support – BLE, Fingerprint, and EM Proximity Card
- Massive Storage Capacity – 5,00,000 Event Logs, 50,000 Users
- Finger Template Storage:- 1:N Mode: 25,000,1:1 Mode: 1,00,000
- Multi-Connectivity Options – WiFi, Ethernet, Bluetooth, RS-232, RS-485, Wiegand
- Compact Design with IP65 Rating
- Buzzer Alert with Tri-color Status LED
- Suitable for Access Control and Time-Attendance Applications
- Dimensions (mm): Width 50.5 x Height 160 x Depth 44
100 in stock
SPECIFICATIONS
SPECIFICATIONS
| Credential Support | BLE, Fingerprint and RFID Card |
| Template Per User | Up to Ten (Single Template per Finger Mode) or Up to Five (Dual Template per Finger Mode) |
| Card Type | EM Prox (COSEC PATH DCFE) |
| Template Storage Capacity | SFM 6030: 25,000 (1:N) And 100,000 ( 1:1) |
| Cards Per User | Two |
| Events Buffer | 5,00,000 |
| Max. Users | 50,000 |
| RS-485 | Yes (115.2Kbps) |
| Battery Backup | No |
| Ethernet | Yes (10/100Mbps) |
| PoE | Yes (IEEE 802.3 af) |
| Exit Switch | Yes |
| Door Status Sense | Yes (2 State) |
| Door Lock Relay | Form C and SPDT Relay (Max 1A@30 VDC) |
| Door Lock Power | Internal 12V DC @ 0.5 Amp |
| Reader Interface types | RS-232 and Wiegand IN/OUT |
| Buzzer | Yes |
| LED | Single LED (TriColor ) |
| CPU | Cortex A8 800 MHz |
| Flash Memory | 512 MB |
| RAM Memory | 512 MB |
| Input Power | 12V DC @ 2A |
| Humidity | 5% to 95% RH Non – Condensing |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Tamper Detection | Yes |
| IP65 | Verified |
| Certification | CE and BIS |
| Dimension (mm) | 50.5X160X44 |
| Weight (kgs) | 0.27 |
| Wi-Fi | Yes (802.11 b/g/n) |

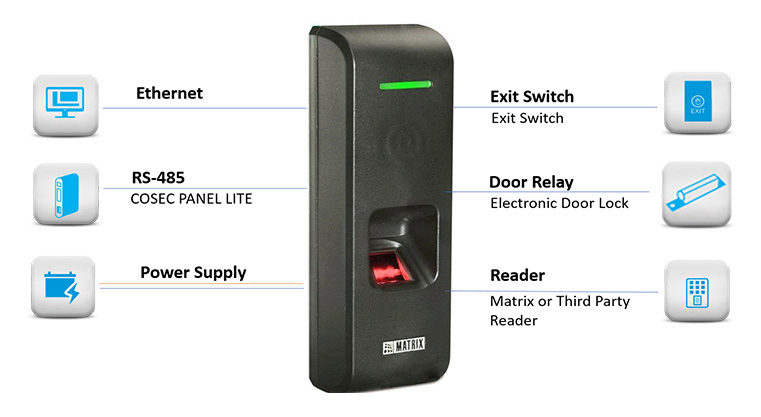

Application Diagram
DOWNLOADS
DOWNLOADS
Datasheet
|
