With the presence of multiple devices for various functionalities in an organization, it becomes important to have effective central control over them. Matrix presents the best-in-the-Class I/O controller, COSEC ARC IO800 – a compact I/O controller that manages multiple third parties devices, thereby providing a complete automated security system alongside added advantages such as Elevator control and more.
Access Control Input Output Controller

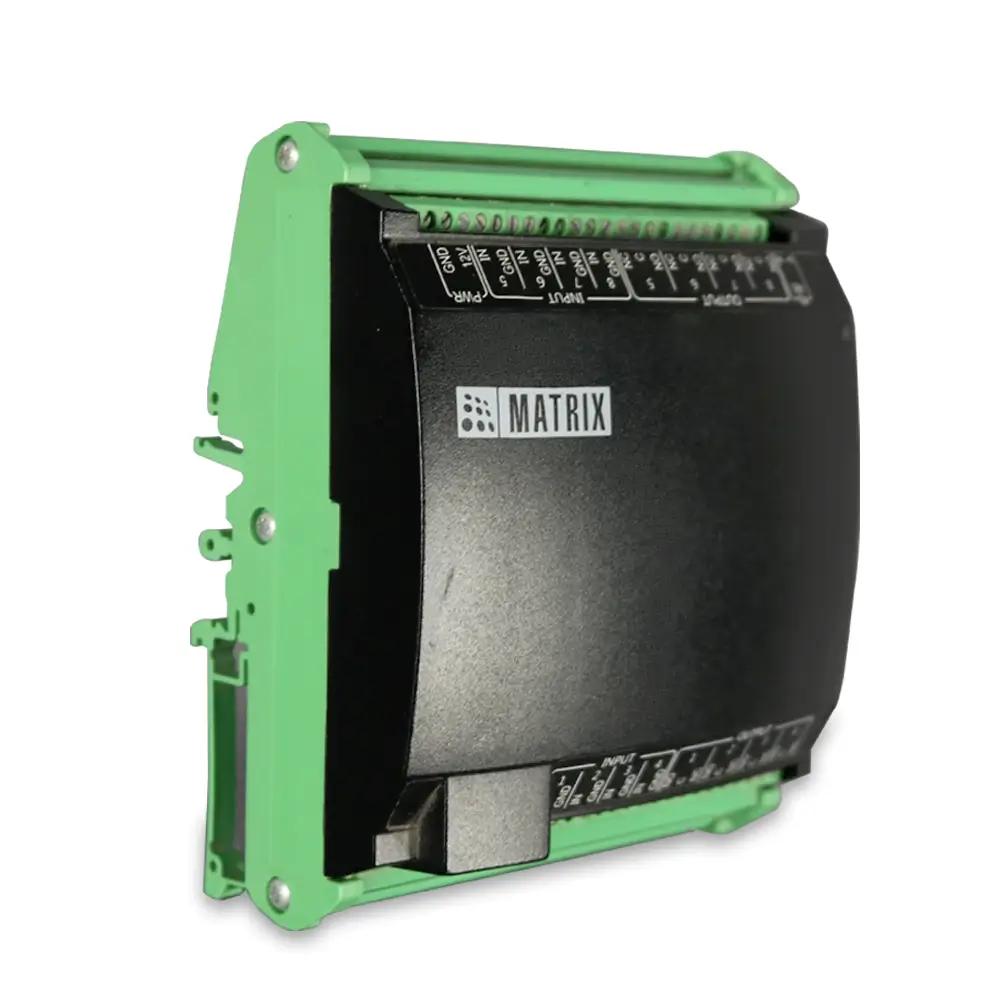

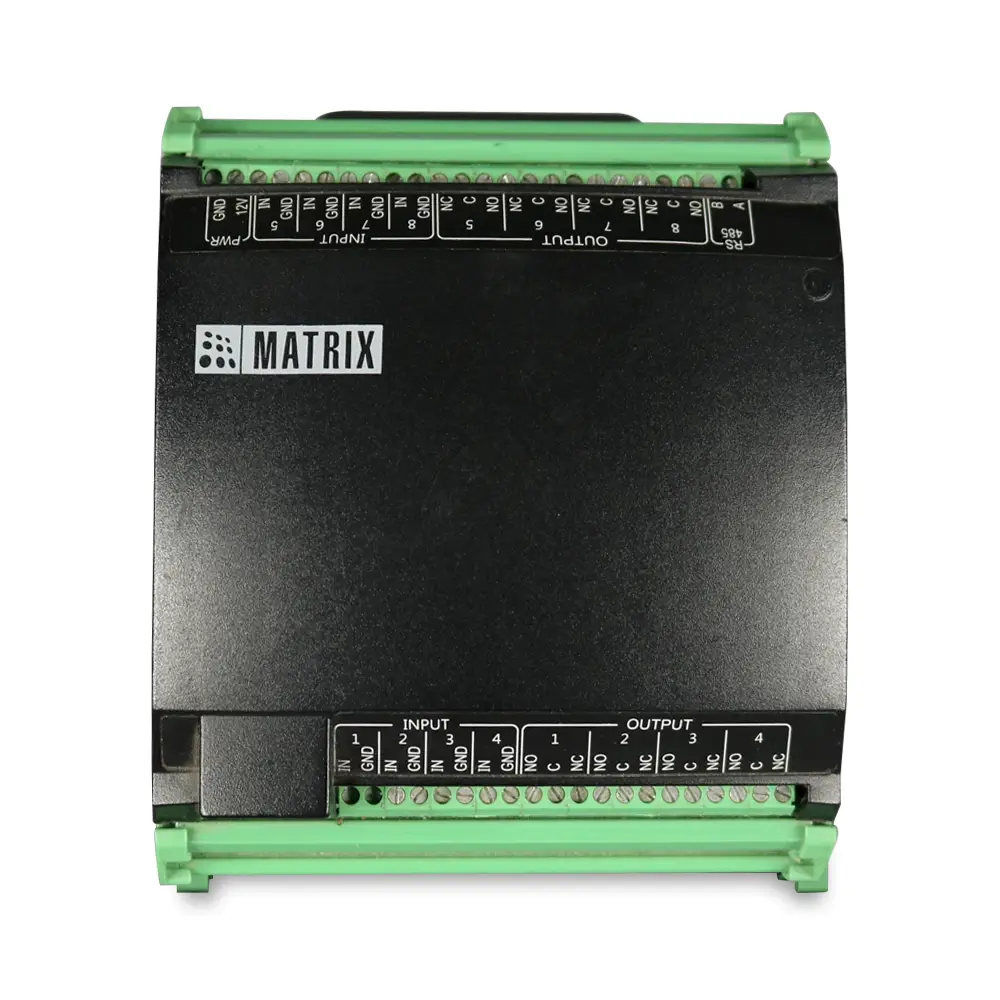

COSEC ARC IO800
- Provides Floor-wise Access Control
- Can Manage upto 8 Floors
- Multi Connectivity Options – Ethernet, PoE, and RS-485
- LED Indication for Devices and Network Status
- 8 Auxiliary Input Ports to Connect Fire Alarm, Auxiliary Sensors and More
- 8 Auxiliary Output Ports to Connect Notifier, Strobe Flash, Siren, Elevator Switches and More
- Suitable for Access Control Applications
- Dimensions (mm): Width 107 X Height 125.5 X Depth 55
100 in stock
SPECIFICATIONS
SPECIFICATIONS
| GENERAL | |
|---|---|
| Input Power | PoE (IEEE 802.3 af) OR 12V DC @ 2A Power Adaptor |
| Communication Mode | Ethernet and/or RD-485 |
| Ethernet | 10/100 Mbps |
| LED | One |
| IN/OUT | |
|---|---|
| IN Ports | Eight Input Ports |
| OUT Ports | Eight Output Ports |
| INPUT Type | Four Stare Supervised |
| OUTPUT Type | 28V DC @ 2A, Relay SPDT, Form C |
| PHYSICAL | |
|---|---|
| Standalone Mode | With Built-in Software in COSEC PANEL LITE V2 |
| CENTRA Mode | With COSEC CENTRA (with or without COSEC PANEL LITE V2) |
| PHYSICAL | |
|---|---|
| Dimensions (W x H x D) (mm3) | 107 x 125.5 x 55 |
| Weight | 260 g (Approx.) |
| ENVIRONMENTAL | |
|---|---|
| Humidity | 5% to 85% RH Non-Condensing |
| Operating Temperature | 0°C to + 50°C (32°F to 122°F) |
Application Diagram
DOWNLOADS
DOWNLOADS
|
Datasheet
|
