Aadhaar Enabled Attendance Solution (AEBAS) is a cloud-based biometric attendance management system using Aadhaar number for government organizations that aims to increase employee efficiency. Using MiFare Classic Card as its card authentication medium, COSEC VEGA FAXQ from Matrix is the first embedded Linux-based Aadhaar-enabled attendance device registered on the AEBAS Server. This Aadhaar biometric device was created specifically for attendance monitoring applications. It authenticates users in less than 1.5 seconds using their Aadhaar number stored on the smart card and their fingerprint. The device provides distinct benefits in terms of connectivity, technology, usage environment, and ease of use. Its IP65 design, smart card, multi-language, PoE, wireless connectivity, and touchscreen make it a reliable Time-Attendance solution for government agencies.
Aadhaar Enabled Time-Attendance Terminal

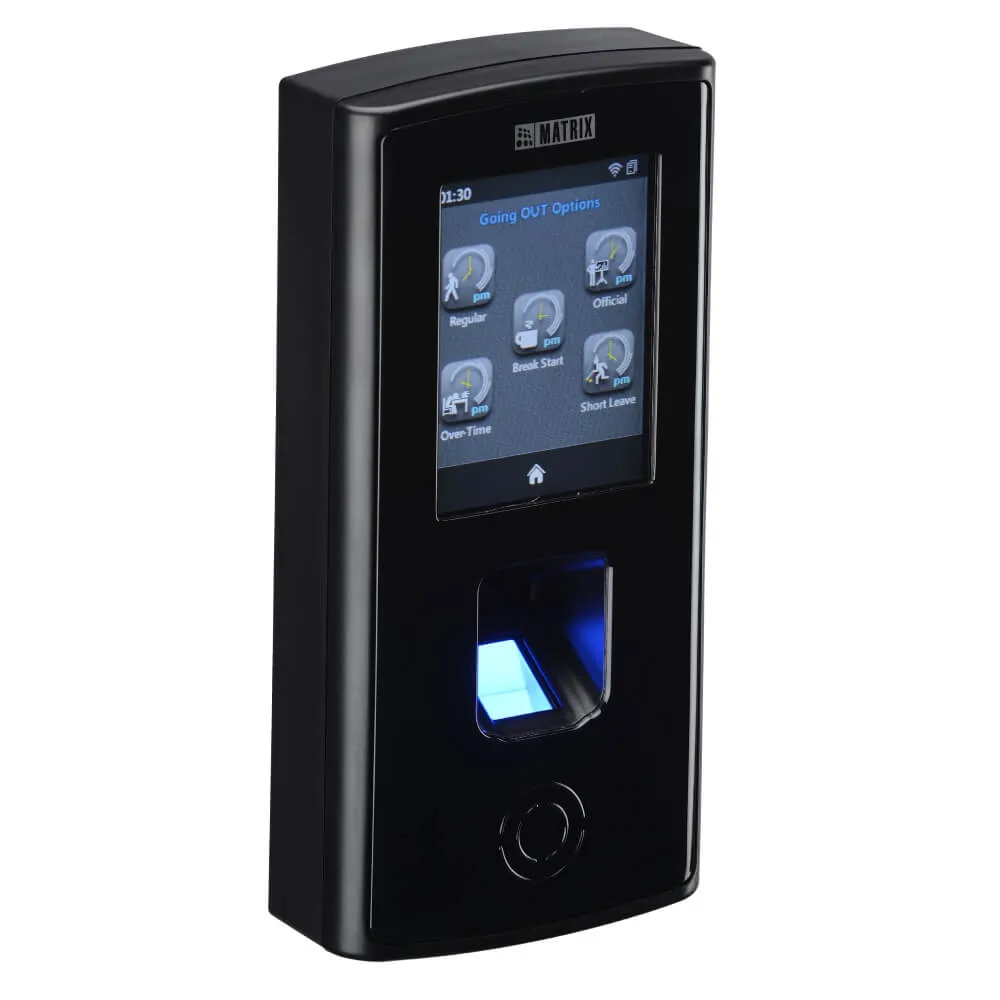

COSEC VEGA FAXQ
- Multi Credential Support – Fingerprint, MiFare Classic Card, PIN
- Multi Connectivity Options – Ethernet, PoE, 3G/4G/LTE, and USB,
- Massive Storage Capacity – 50,000 Users, 5,00,000 Events
- Finger Template Capacity – 9,600 (1: N Mode) and 100,000 (1:1 Mode)
- AEBAS Approved Linux Device
- 3.5″ LCD Touch Panel with IP65 Rating
- Suitable for Time-Attendance Applications
- Dimensions (mm): Width 91 X Height 186 X Depth 38
100 in stock
SPECIFICATIONS
SPECIFICATIONS
| Variants | COSEC VEGA FAXQ |
|---|---|
| Application | Time-Attendance |
| Integration | AEBAS Server |
| Credential Support | Finger, RFID Card, and Aadhaar Number |
| Card Support | MIFARE Classic® Smart Card (Read/Write Supported) |
| Sensor | Suprema Optical Sensor (STQC Certified) |
| Keypad | Touch Screen Based |
| Display | 3.5″ TFT Display with Capacitive Touch Panel |
| Display Size | 320 x 240 Pixels |
| Size of Wallpaper | 512 Kb |
| Ethernet | Yes (10/100 Mbps on Ethernet) |
| Wi-Fi | Yes (802.11 b/g/n) |
| PoE | Yes (IEEE 802.3 af) |
| Mobile Broadband | Yes (3G/4G Support) through USB dongle |
| USB | Yes (For 3G/4G Connectivity and Data Transfer) |
| 2G/3G/4G Dongle Specification | Huawei E3351 Data Card |
| Dongle Dimension (W x H x D) | 25.4 x 65 x 8.5mm (1.0″ x 2.5″ x 0.3″) |
| User Photo Display | Yes |
| Buzzer | Yes |
| Platform (Operating System) | Embedded Linux |
| CPU | 800 MHz ARM Cortex A8 based Processor |
| Flash Memory | 256 MB Flash |
| RAM Memory | 512 MB DDR3 RAM |
| Micro SD Card | Yes (Inbuilt 16 GB) |
| Input Power | 12 VDC @ 2A |
| Dimensions (WxHxD) (mm3) | 91 x 186 x 38 |
| Weight (kg) | 0.54 |
| Tamper Detection | Yes |
| Humidity | 5% to 85% RH Non-condensing |
| Operating Temperature | 0°C to + 50°C (32°F to 122°F) |
| Certifications | RoHS, CE, FCC, IP65, BIS, Shock and Vibration Proof |
| Due to continuous technology upgrades, product specifications are subject to change without notice. | |
Authentication Process
DOWNLOADS
DOWNLOADS
Datasheet
|
Presentation
|
